      Roller Shades FR

      /
      Please select desired state.

      Please select desired state.

      Value and Performance Come Standard

      Hunter Douglas Architectural standard roller shade systems provide a solid entry point for value-conscious projects, offering manual chain and crank lifting mechanisms to fit a variety of window types. A comprehensive selection of shading fabrics allows our standard systems to meet performance and fenestration requirements that few others can.

      The key feature of this system is its chain clutch operating system, which enables precise and reliable control of the shade for the entire life of the product.

      Product Details

      Key Features



      • Chain-drive clutch operating system allows precise control to help ensure a uniform look
      • High-performance fabrics available including E Screen with KOOLBLACK® Technology, and Cradle to Cradle Certified™ fabrics GreenScreen® Evolve™ and GreenScreen Revive®
      • A variety of fascia options
      • Dual shades add versatility to any space by allowing two different styles of fabrics to be used on the same window
      • Backed by our Lifetime Guarantee

      System Description

      • Mechanism: manual continuous loop with clutch
      • Fabrics:
        • Over 70 fabrics in more than 500 colors
        • All fabrics are FR* rated for commercial applications
        • Openness factors range from 0% to 25%
      • Widths: 12" to 144" (varies by fabric) †
      • Heights: 12" to 120" †



      * Passes NFPA 701 Small Scale Flammability testing
      † Larger sizes available; surcharges and warranty exclusions apply

      Design Options


      • Fascia, Fascia with Top and Back Cover
        • Aluminum fascia (standard 3" or 4") with top or back cover (standard 3" or 4") to  conceal shade mechanism from front, sides, and top/back
        • Widths from 12" to 192"; heights from 12" to 240"
        • Available in anodized aluminum finish, white, vanilla, bronze, or black
        • 7" fascia available for dual shade systems only



      • Blockout with Side Channels
        • Aluminum side channels, sill channels, and RB 500 bottom bar, fitted with light-blocking wool pile to prevent light leakage around edges and bottom of shade
        • Ideal for room-darkening and A/V applications
        • Available in anodized aluminum finish or painted white, vanilla, bronze, or black



      • Reverse Roll
        • Fabric mounted to descend from the interior (rather than window-facing) side, concealing the roll and creating a more finished appearance



      • Oversized Shades
        • Special accommodations for oversized window applications are available



      • Dual Shades
        • Add versatility to any space by allowing two different styles of fabrics to be used on the same window (one in front of the other)
        • An unlimited number of combinations available for different shade materials

      NOTE: Color and fabric images are for illustration only. For accurate specification, please request product samples.
      Click on fabric to view colorways and specifications.
      The color of a fabric and the openness of its weave play a significant role in determining occupants' views to the outside. Check out our View Through Simulation Tool to find the ideal combination for your next project.

      Filter Swatches by Openness and/or Attribute

      0%

      <1%

      1-2%

      3-5%

      6%+

      Acoustical

      Cradle to Cradle Certified ™

      EPD / HDP

      High-Performance

      PVC-Free

      0% Openness Factor

      Apollo

      Flocke®

      GlacierScreen+ RD 0%

      Morocco

      SheerWeave® 7000

      SheerWeave® 7100

      SheerWeave® 7400

      SheerWeave® 7500

      0% Openness Factor

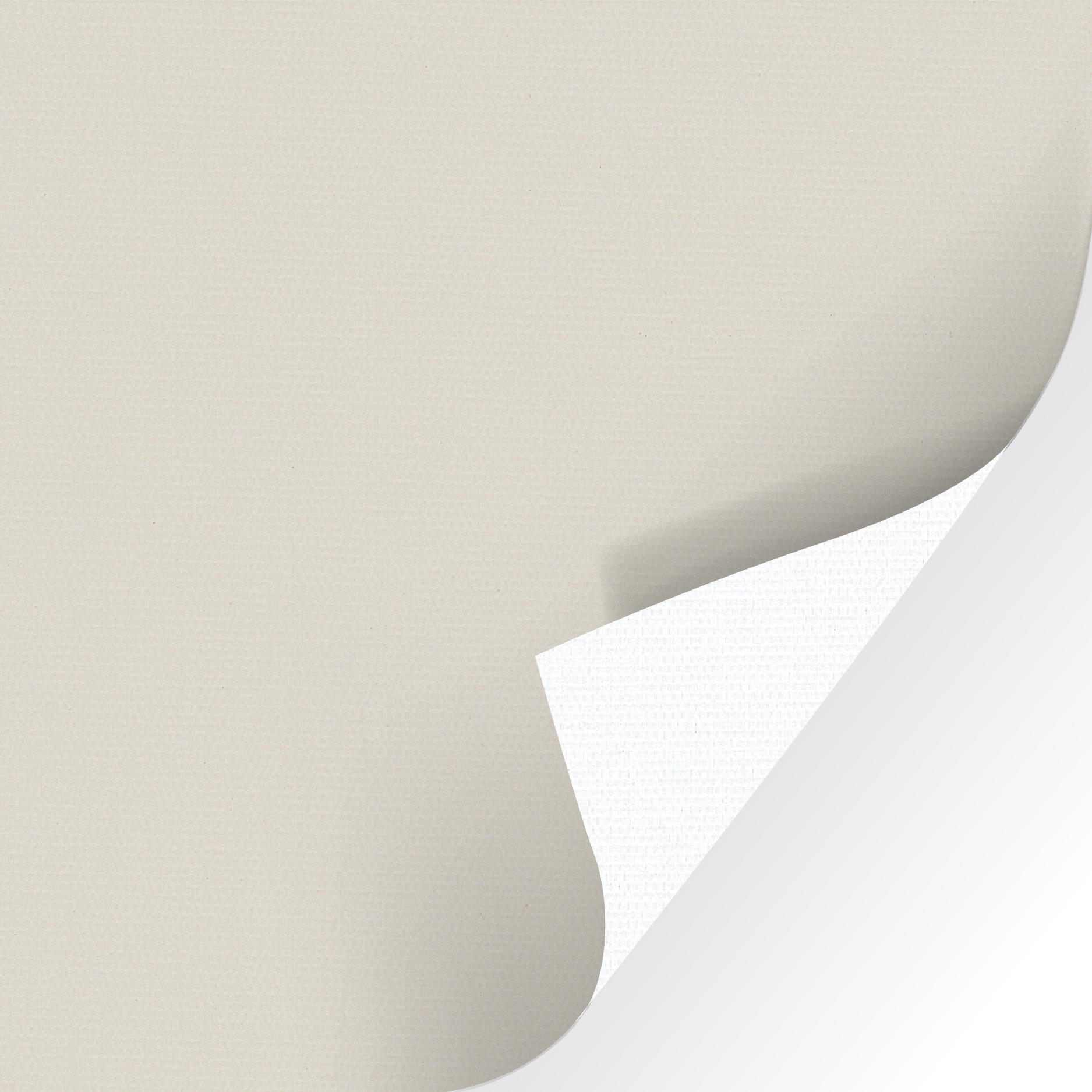

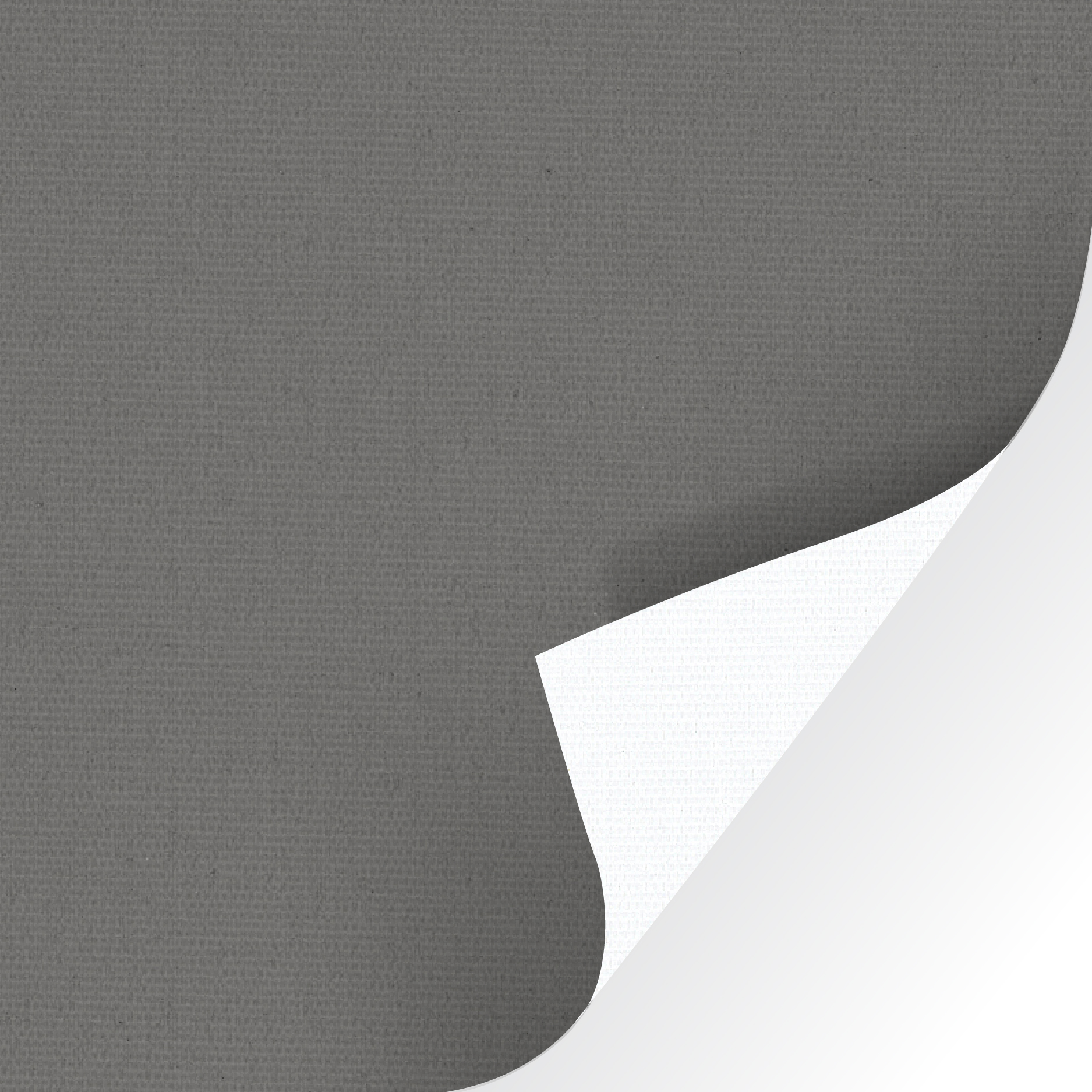

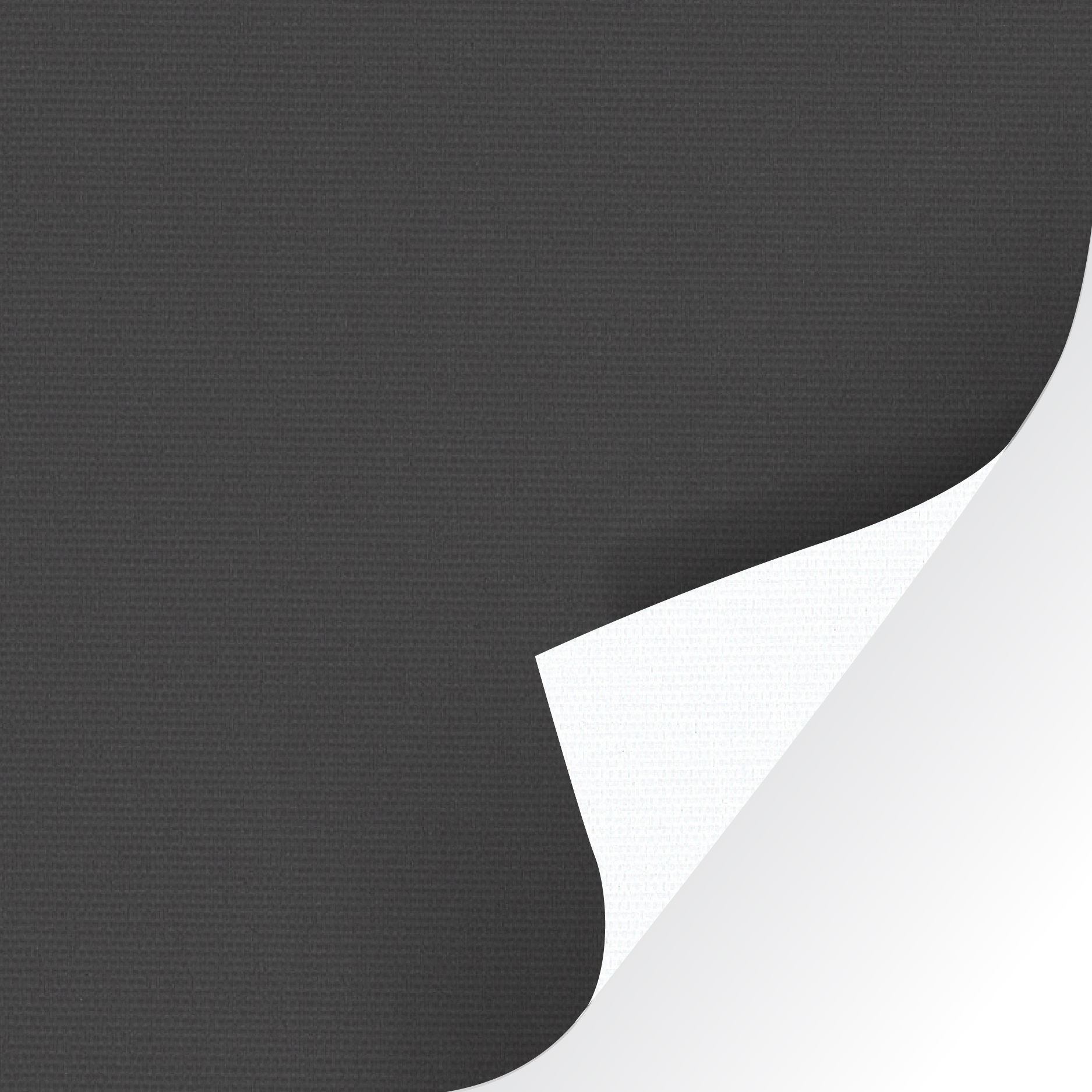

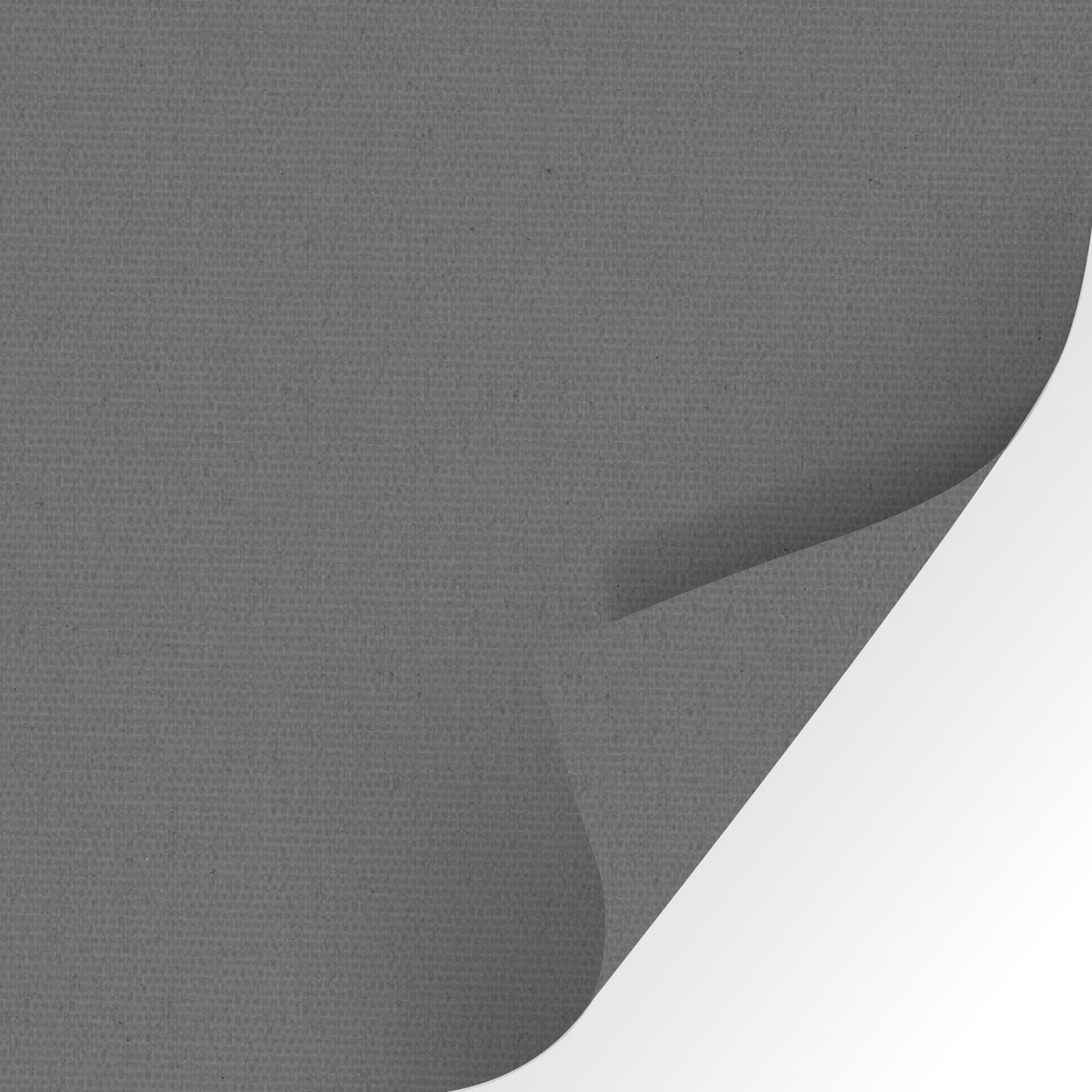

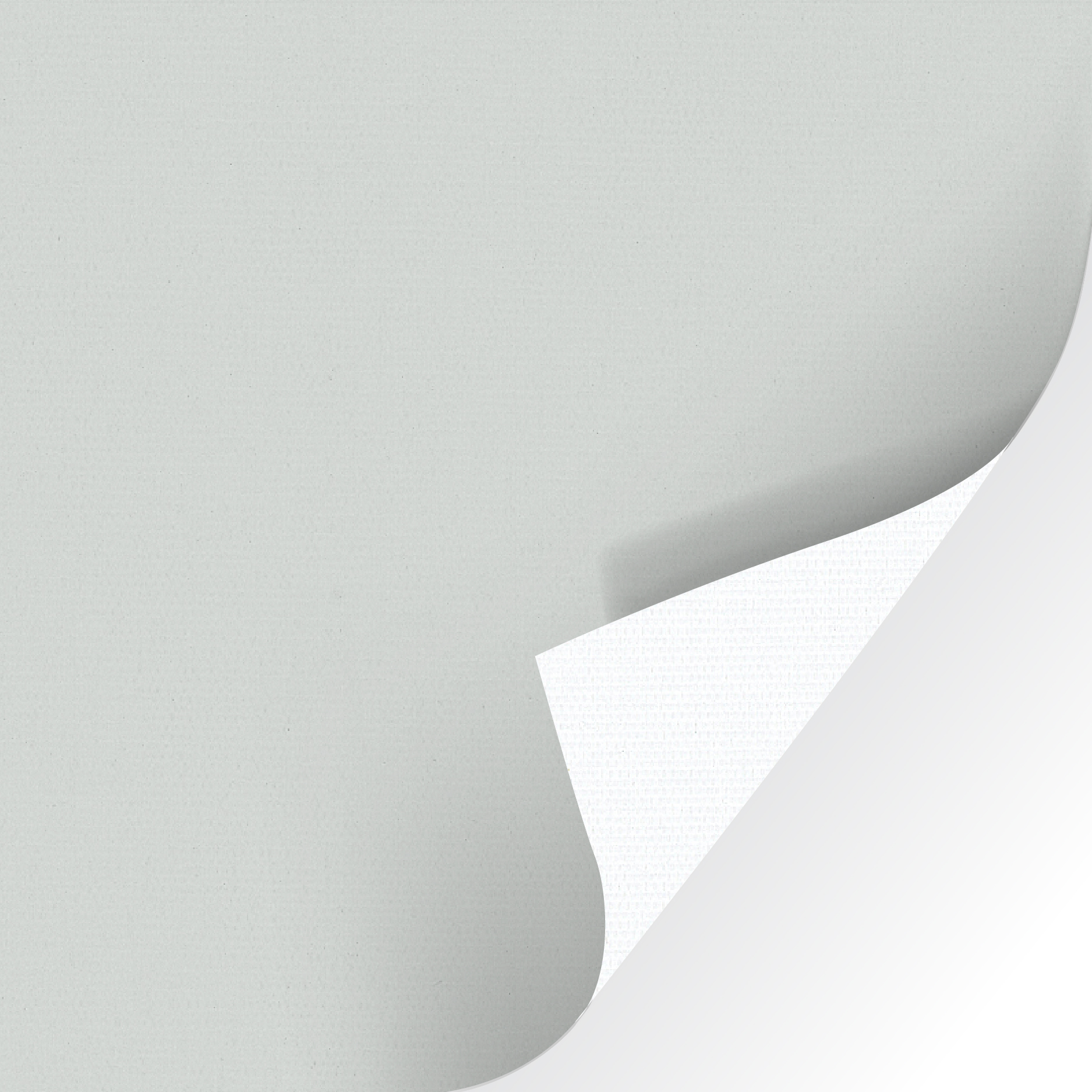

      Sparta Twilight™ 0%

      <1% Openness Factor

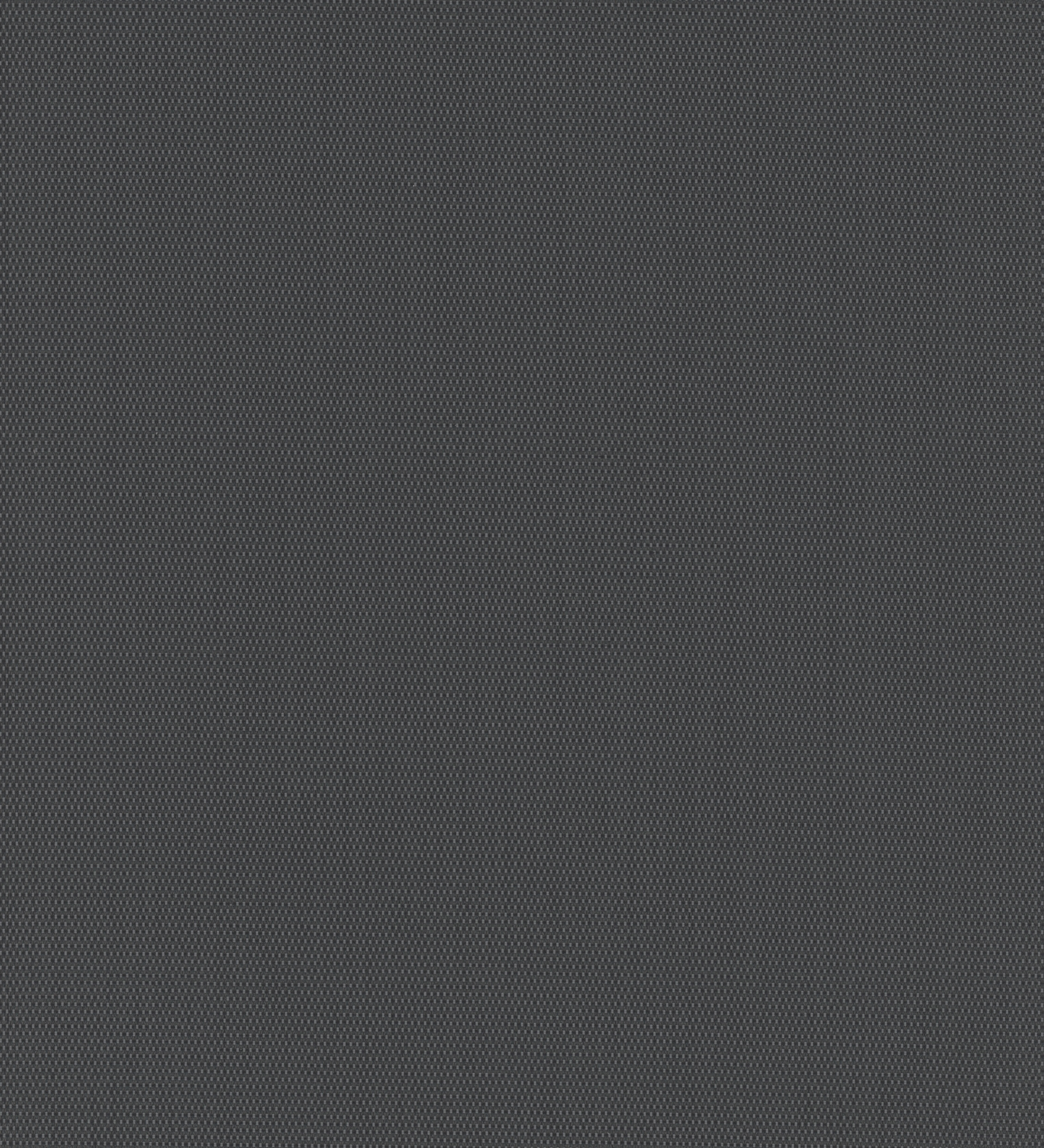

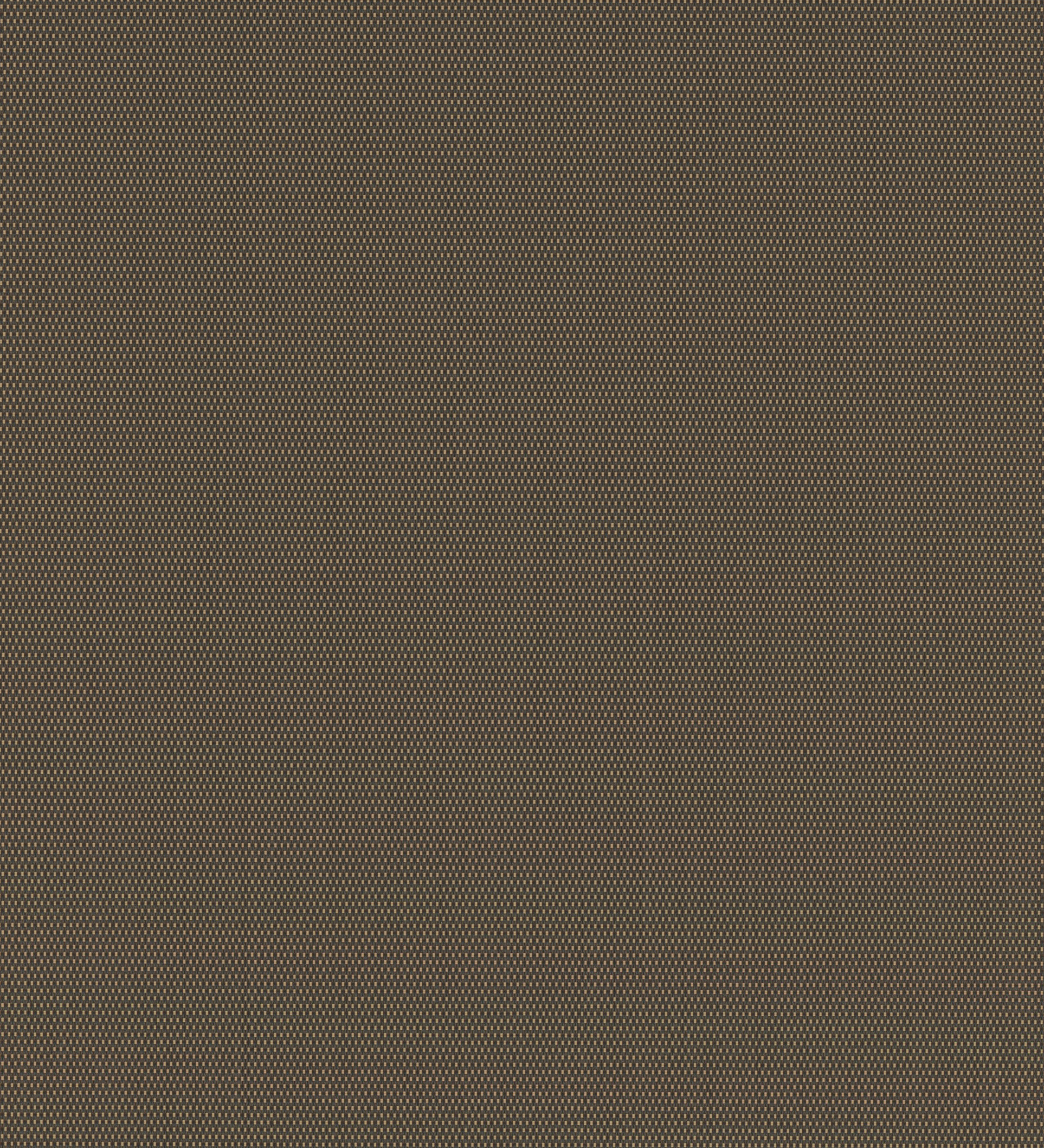

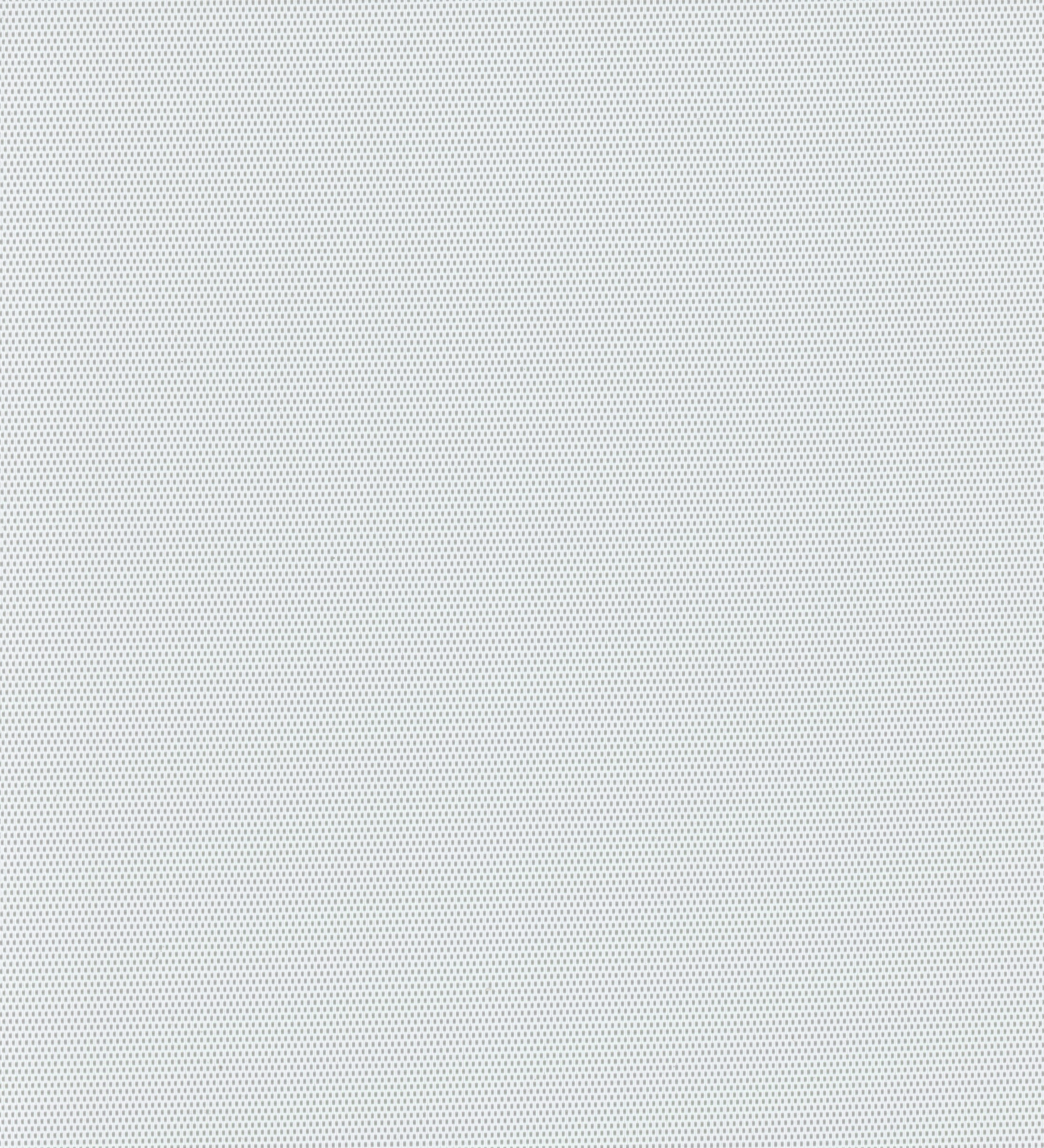

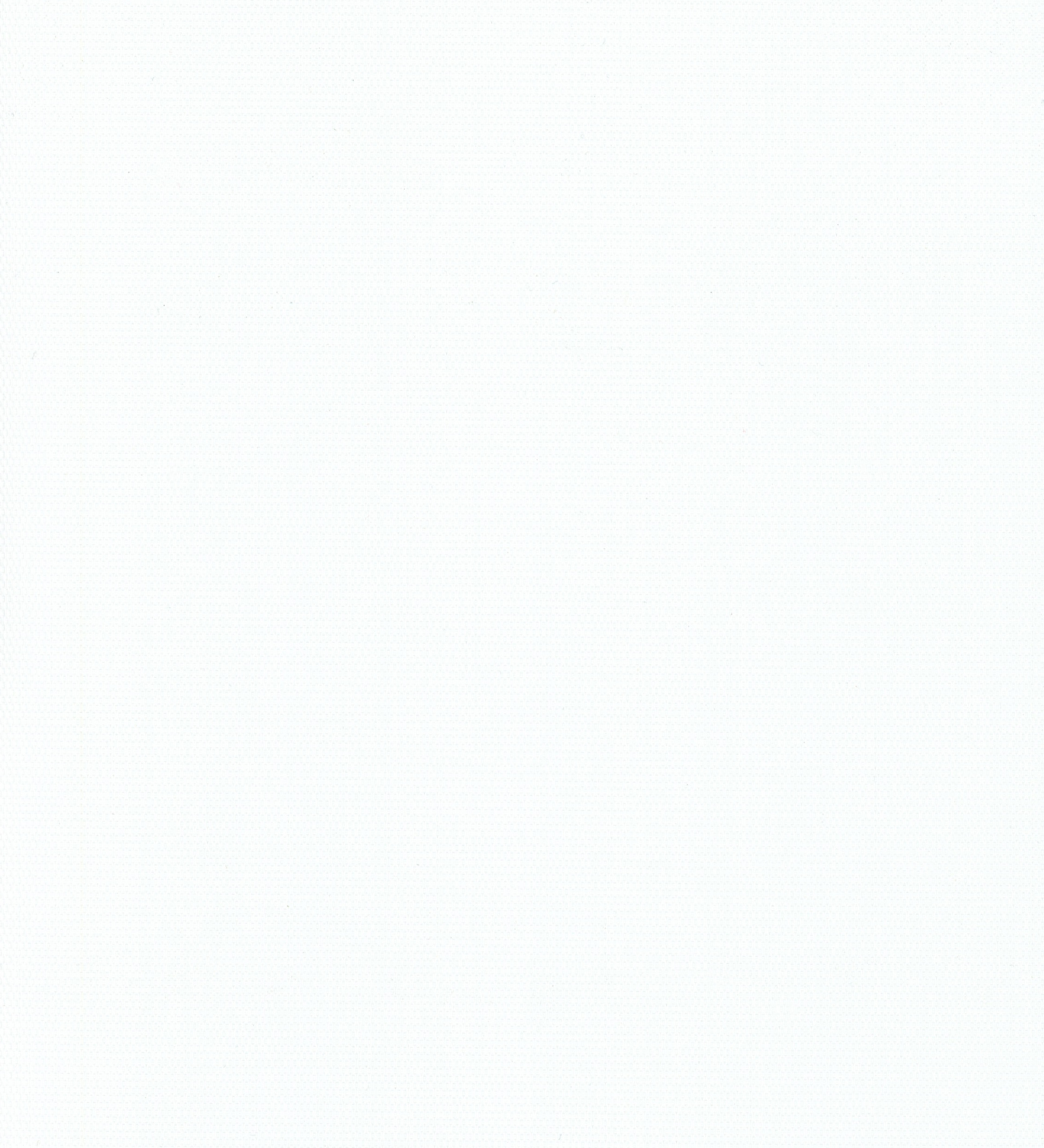

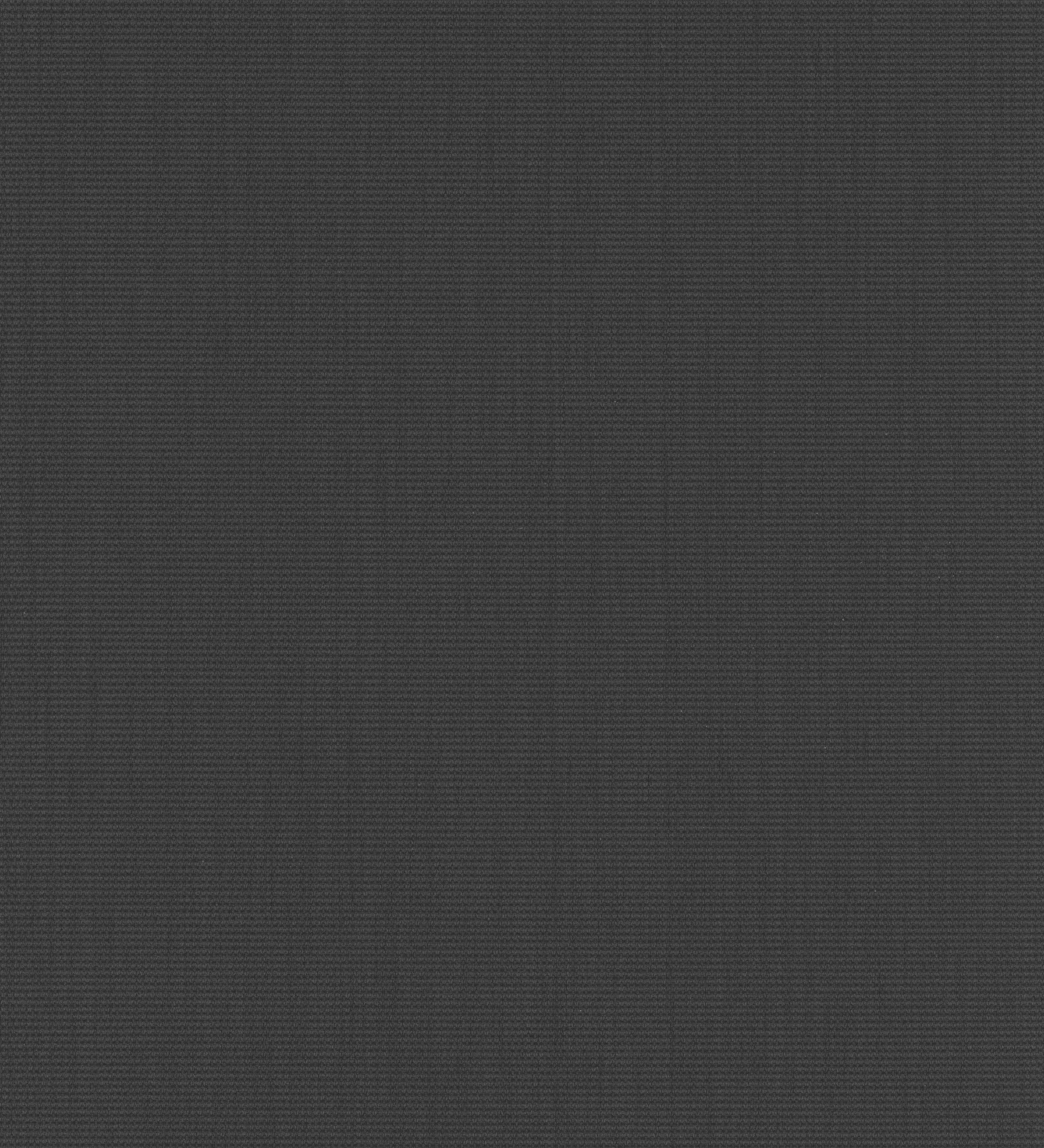

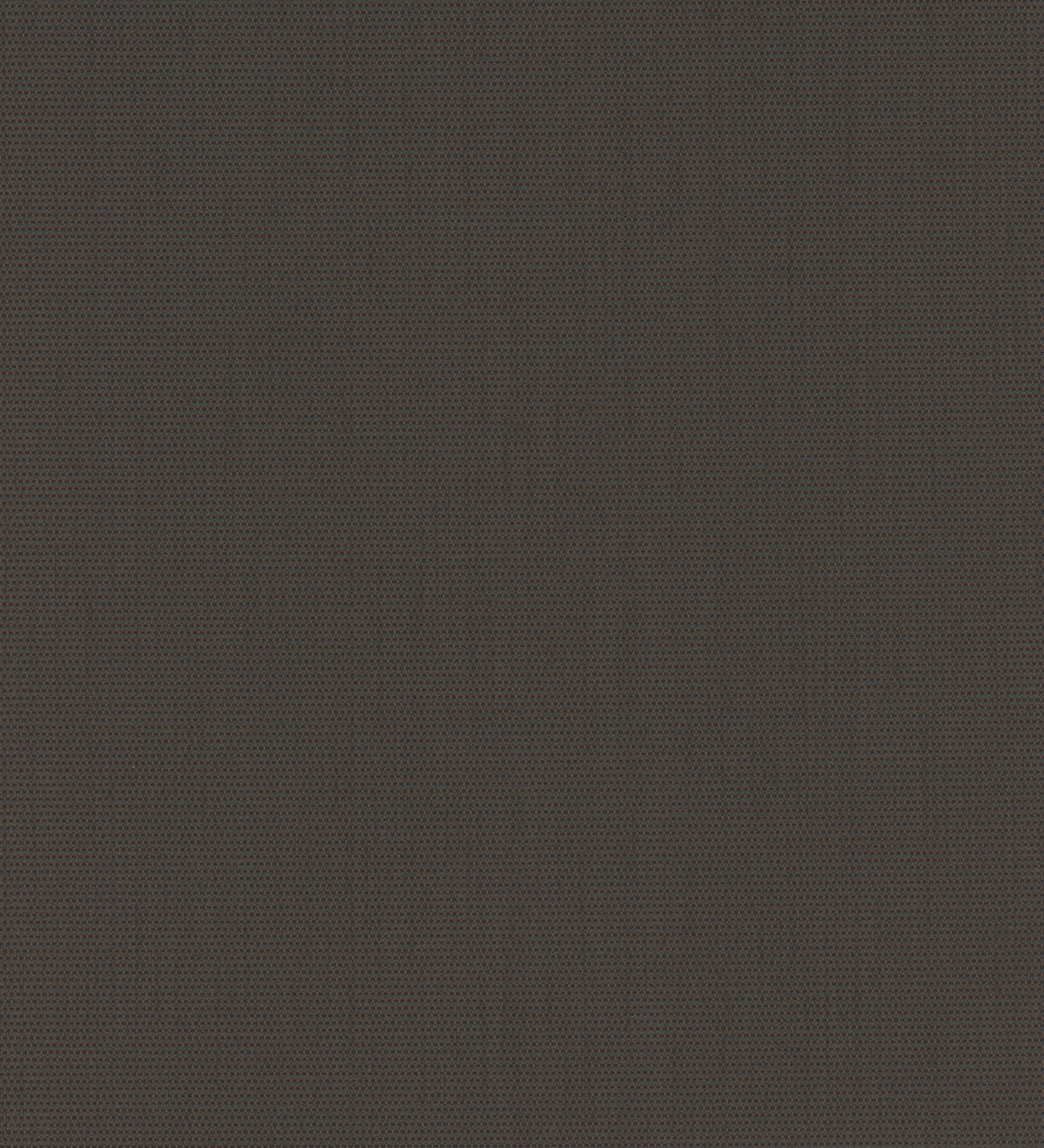

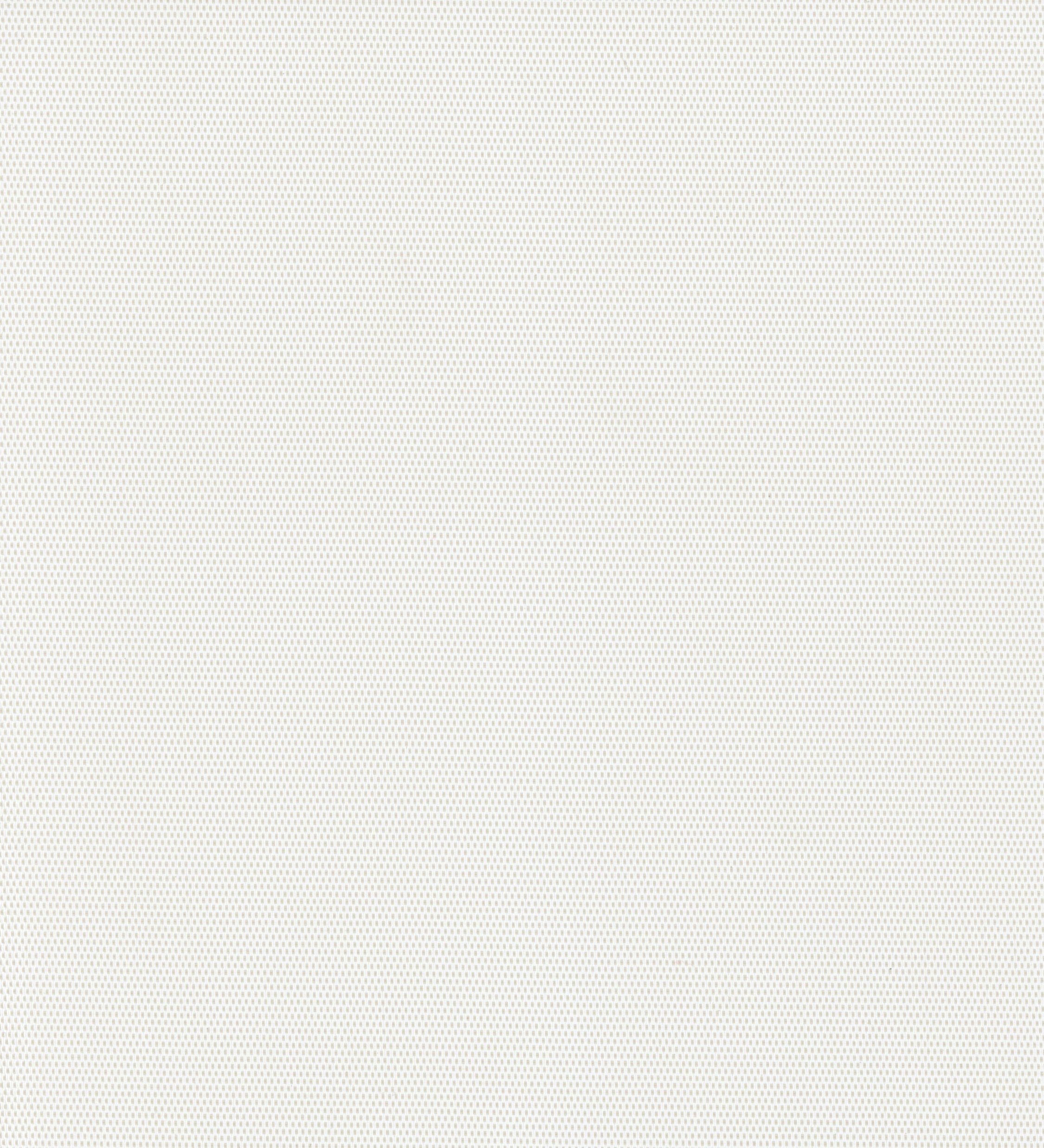

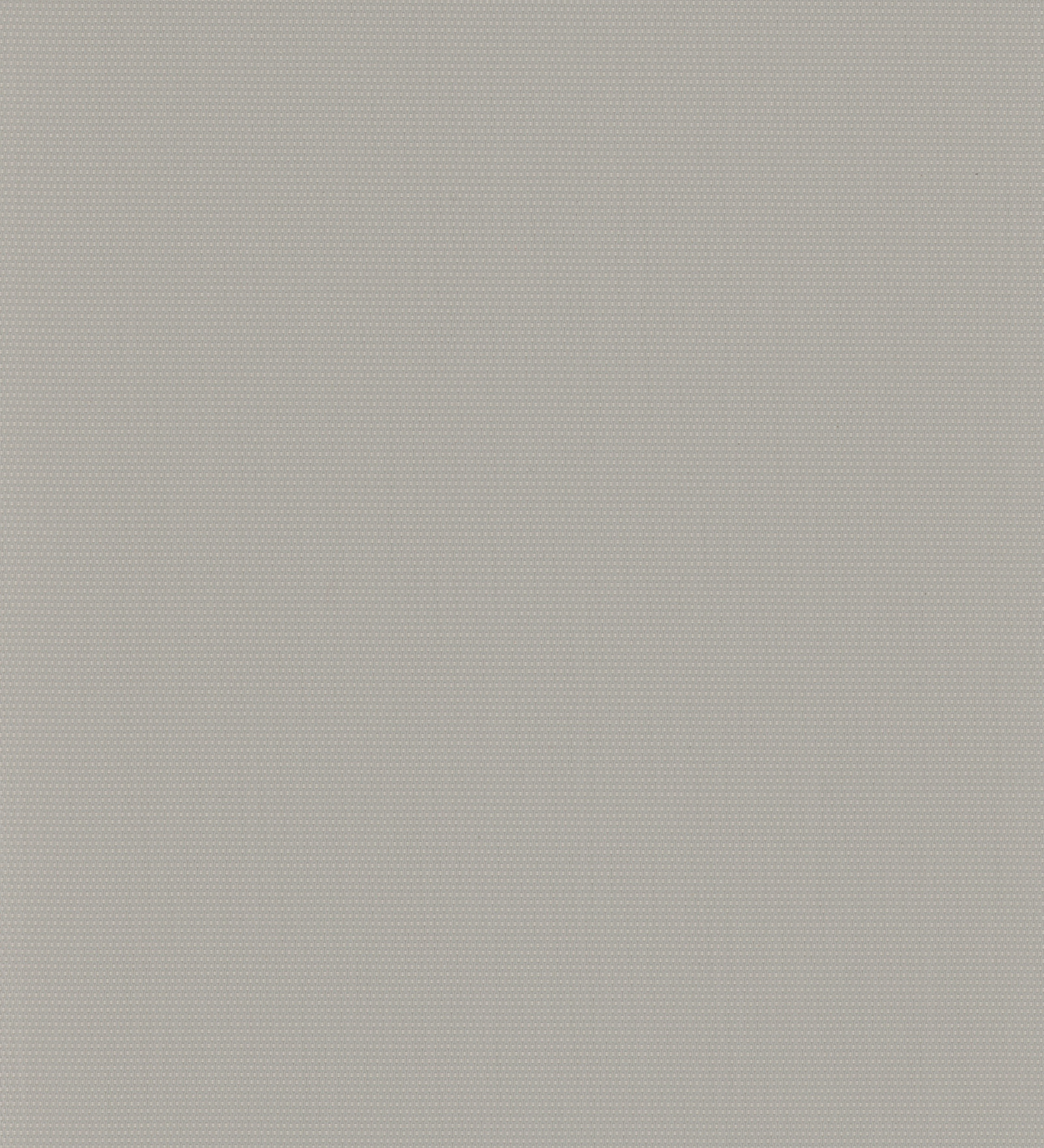

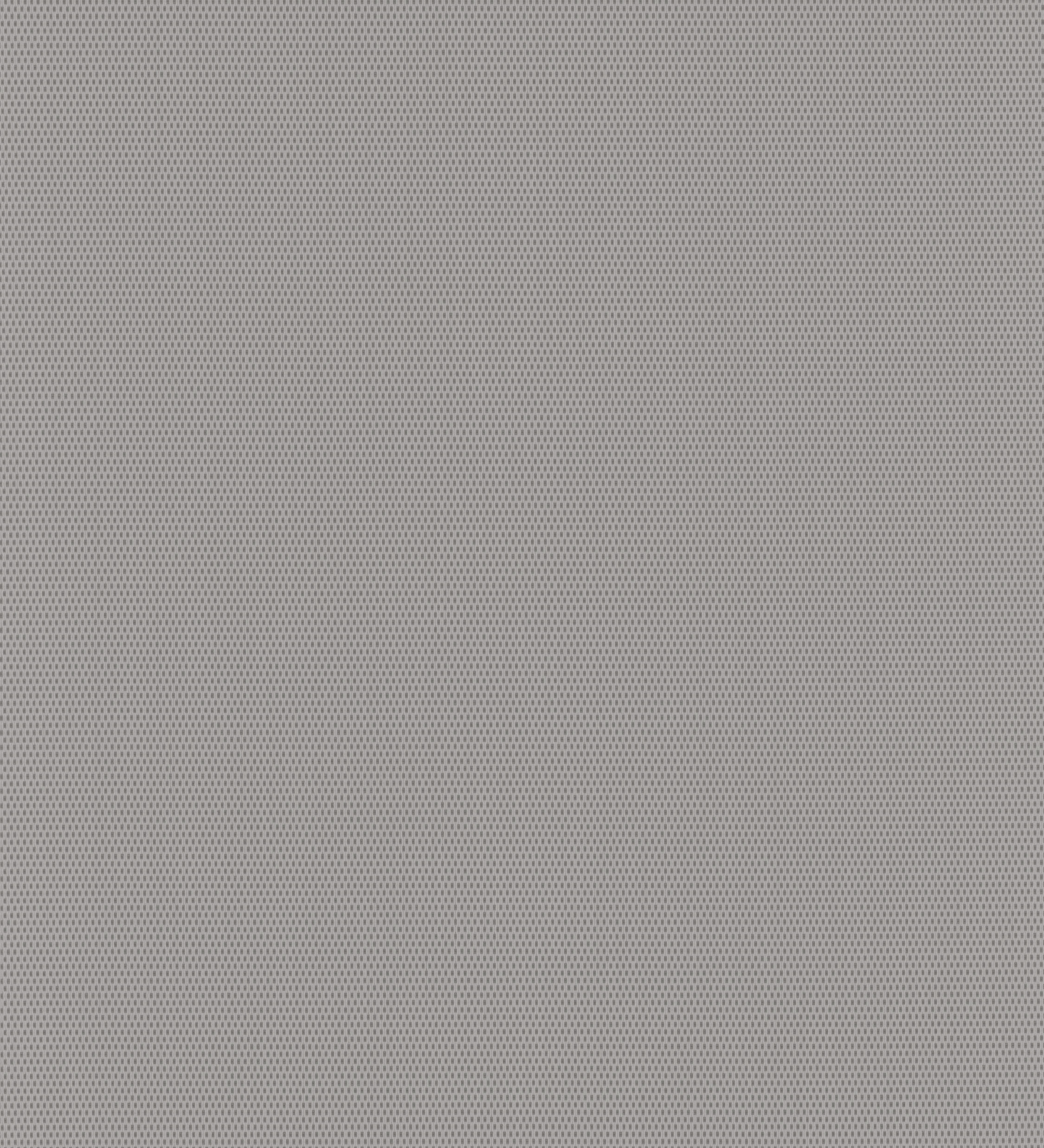

      E Screen™ 0.5%

      1% Openness Factor

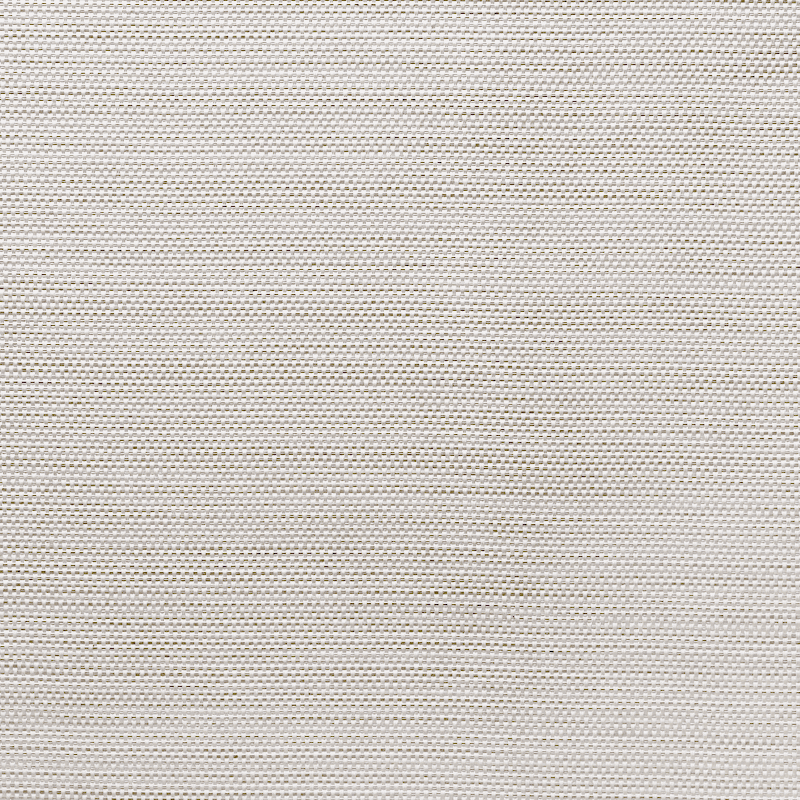

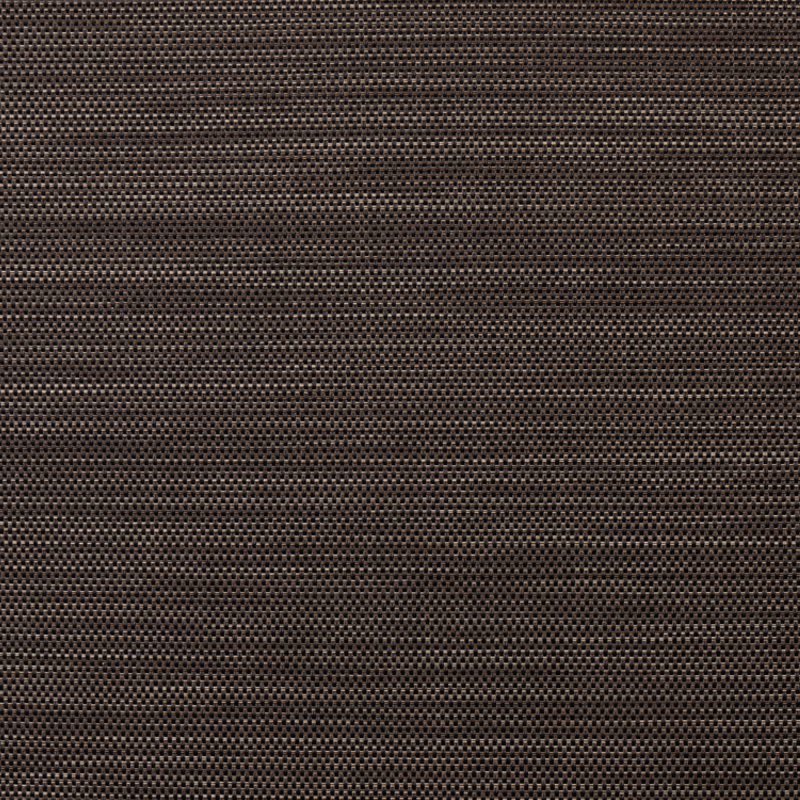

      E Screen Deco™ 1%

      E Screen™ 7501

      E Screen™ 7701 with KOOLBLACK® Technology

      GlacierScreen+ Basketweave 1%

      GlacierScreen+ Twill 1%

      GreenScreen Revive® 1%

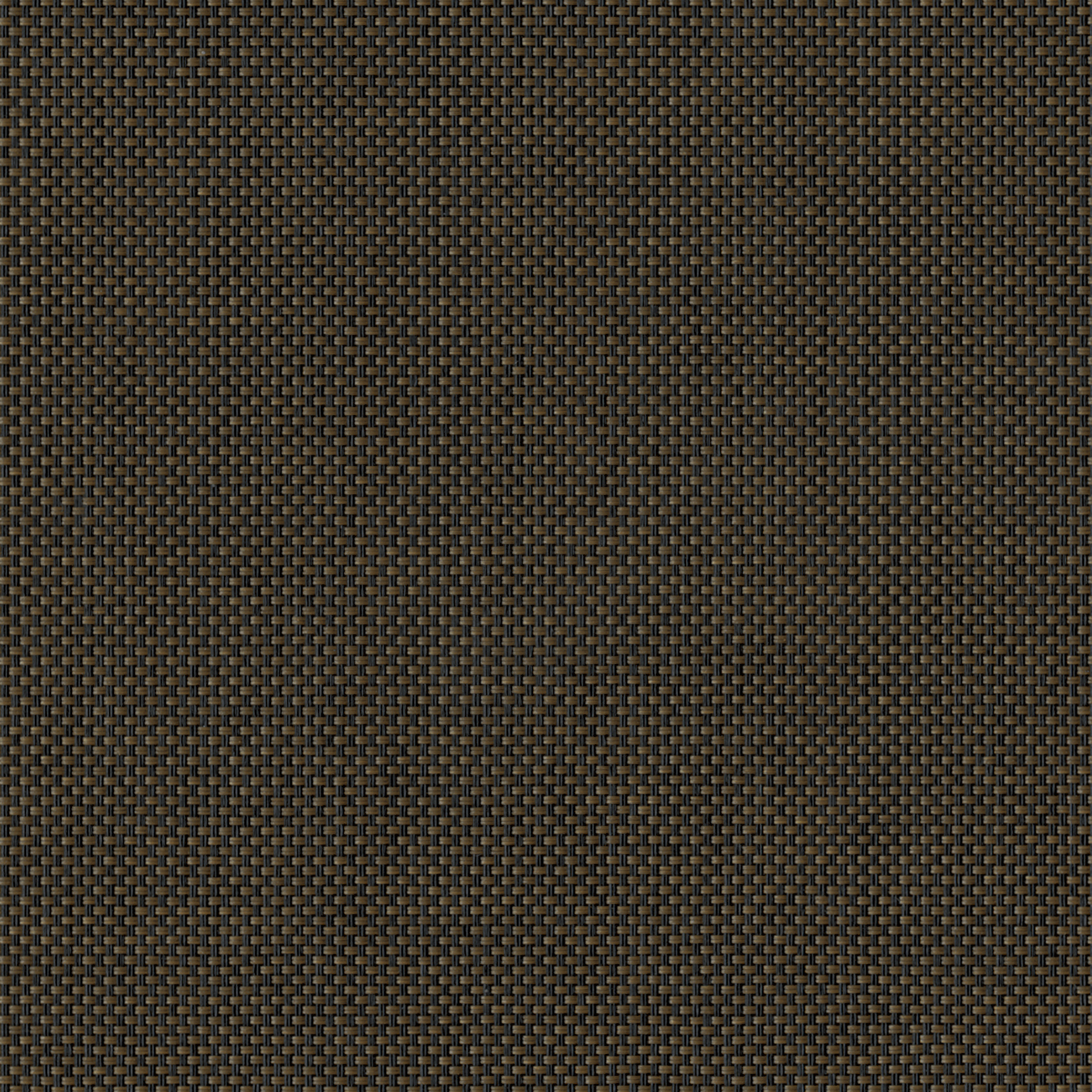

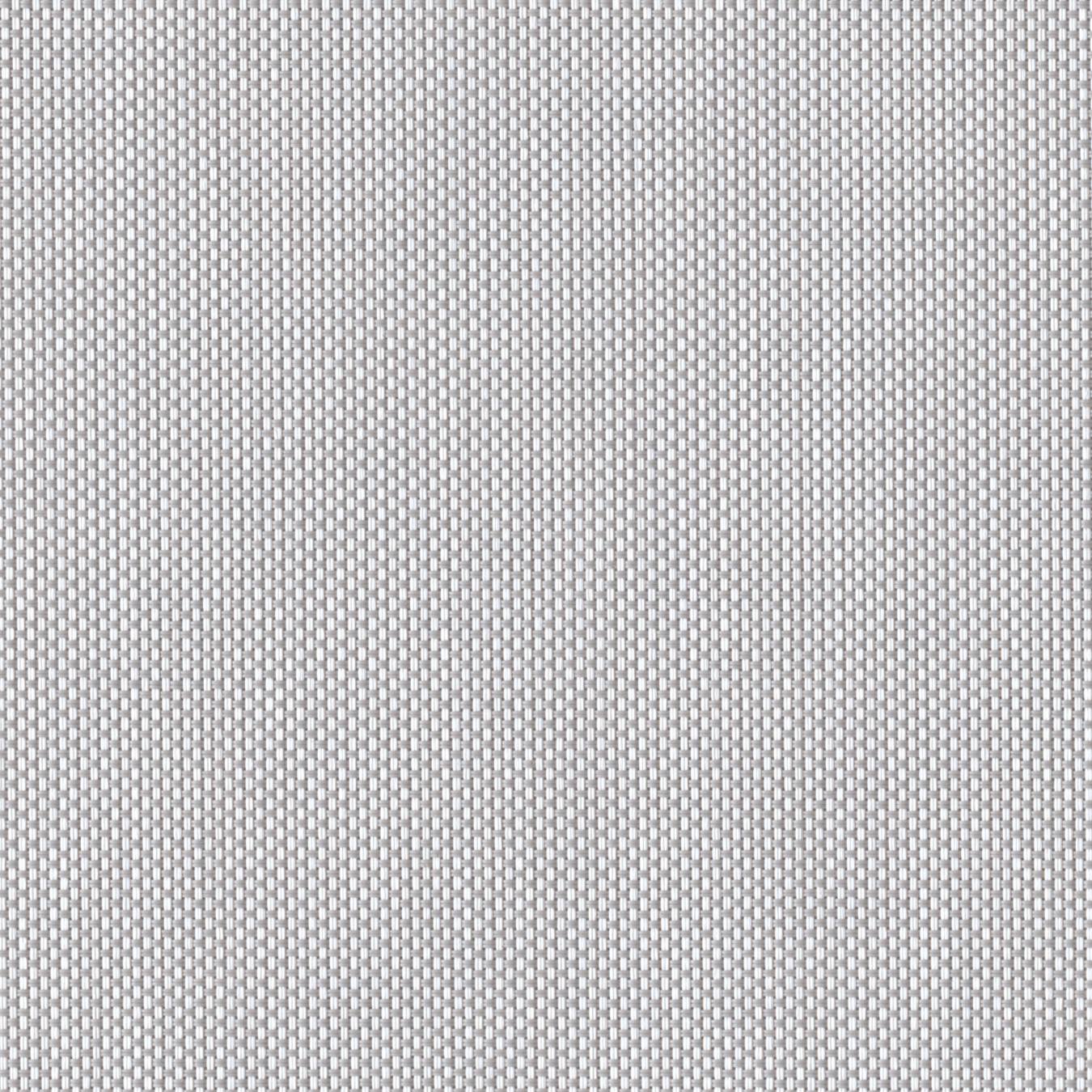

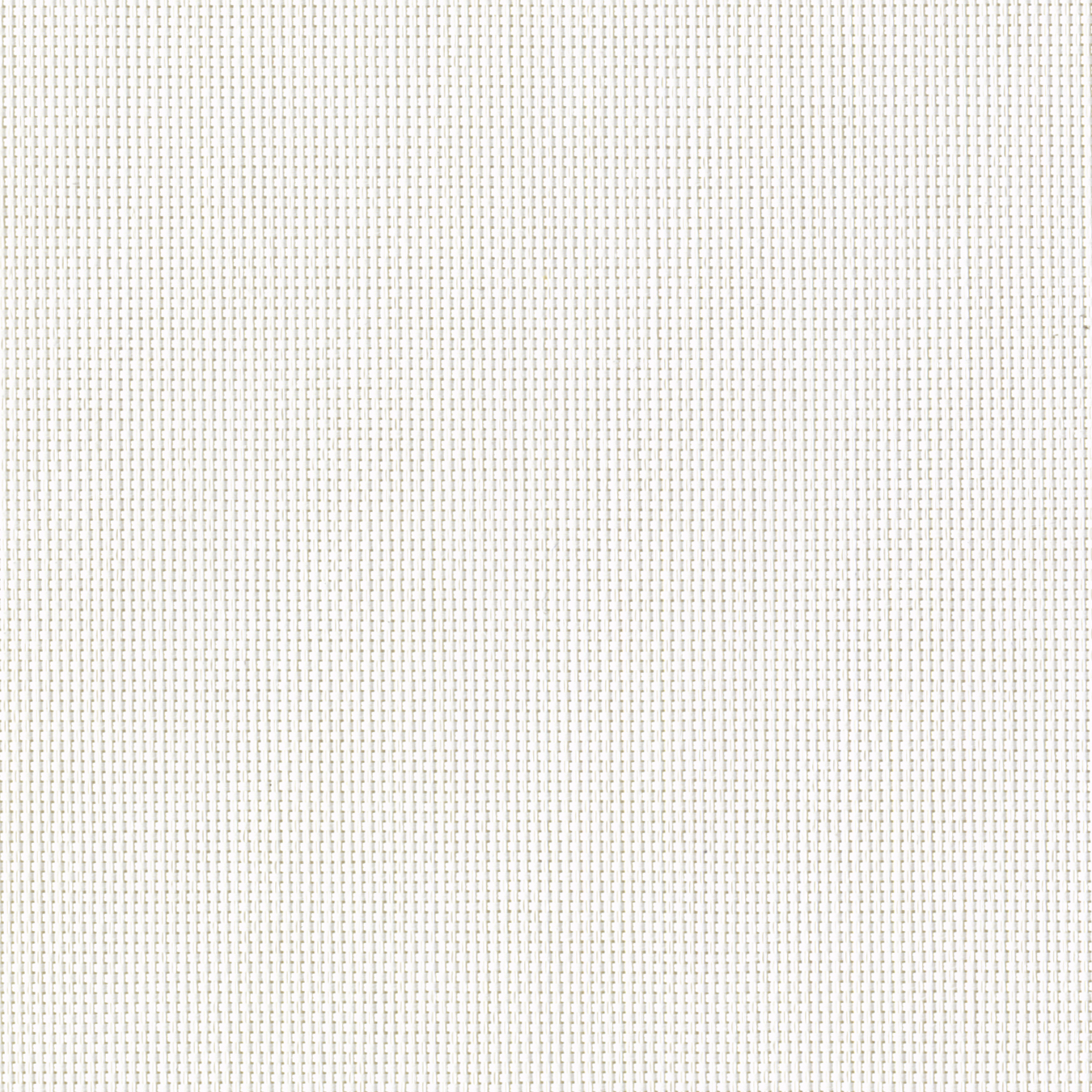

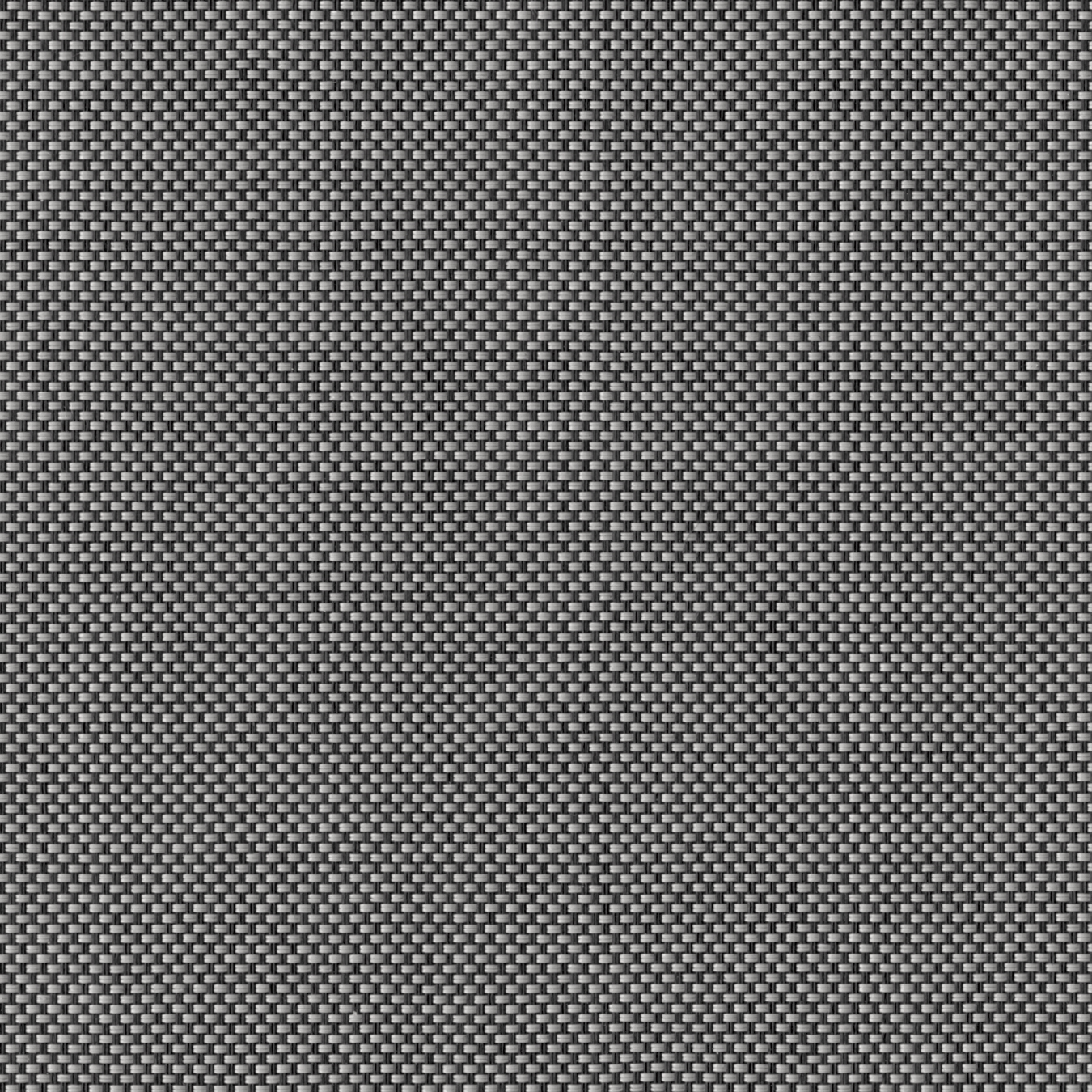

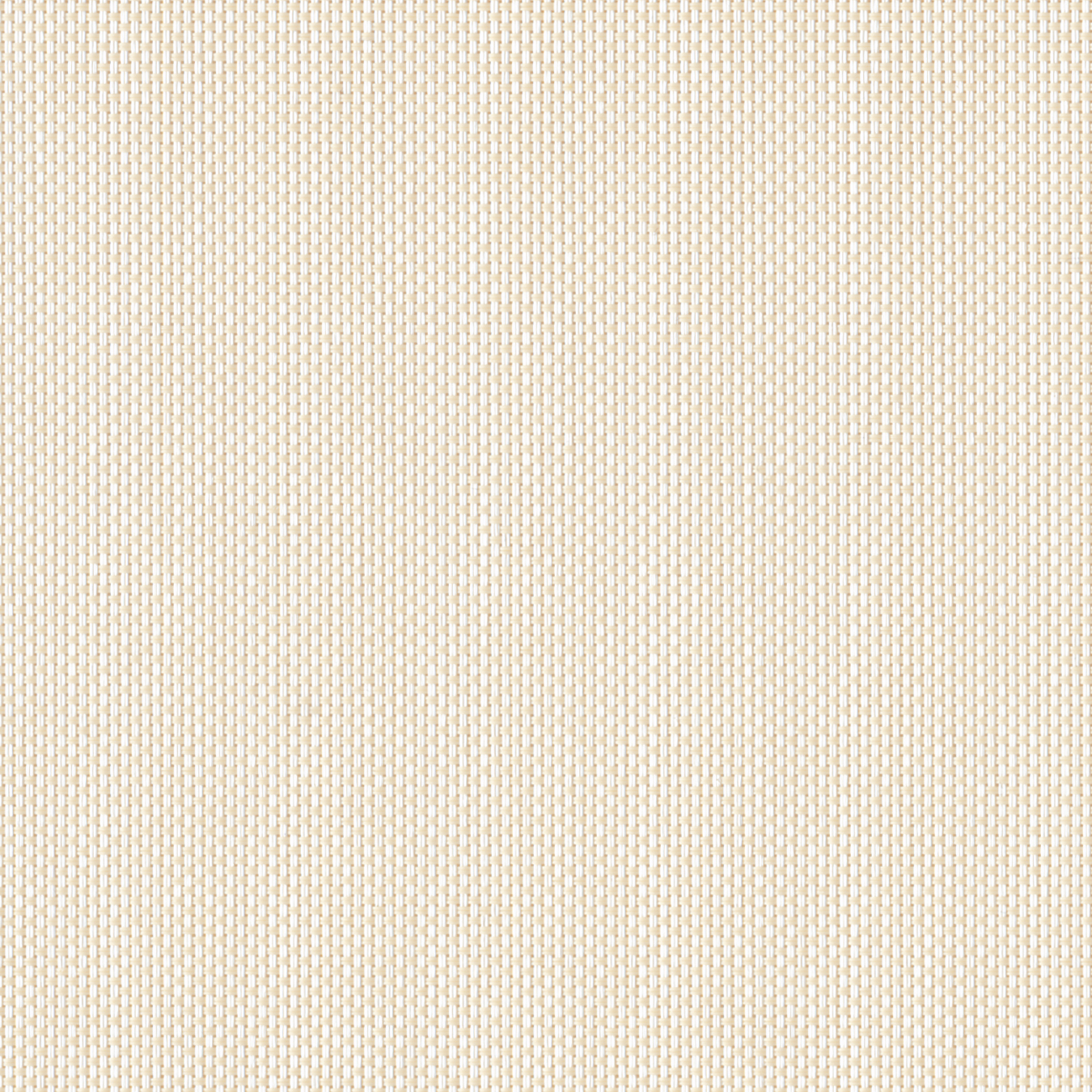

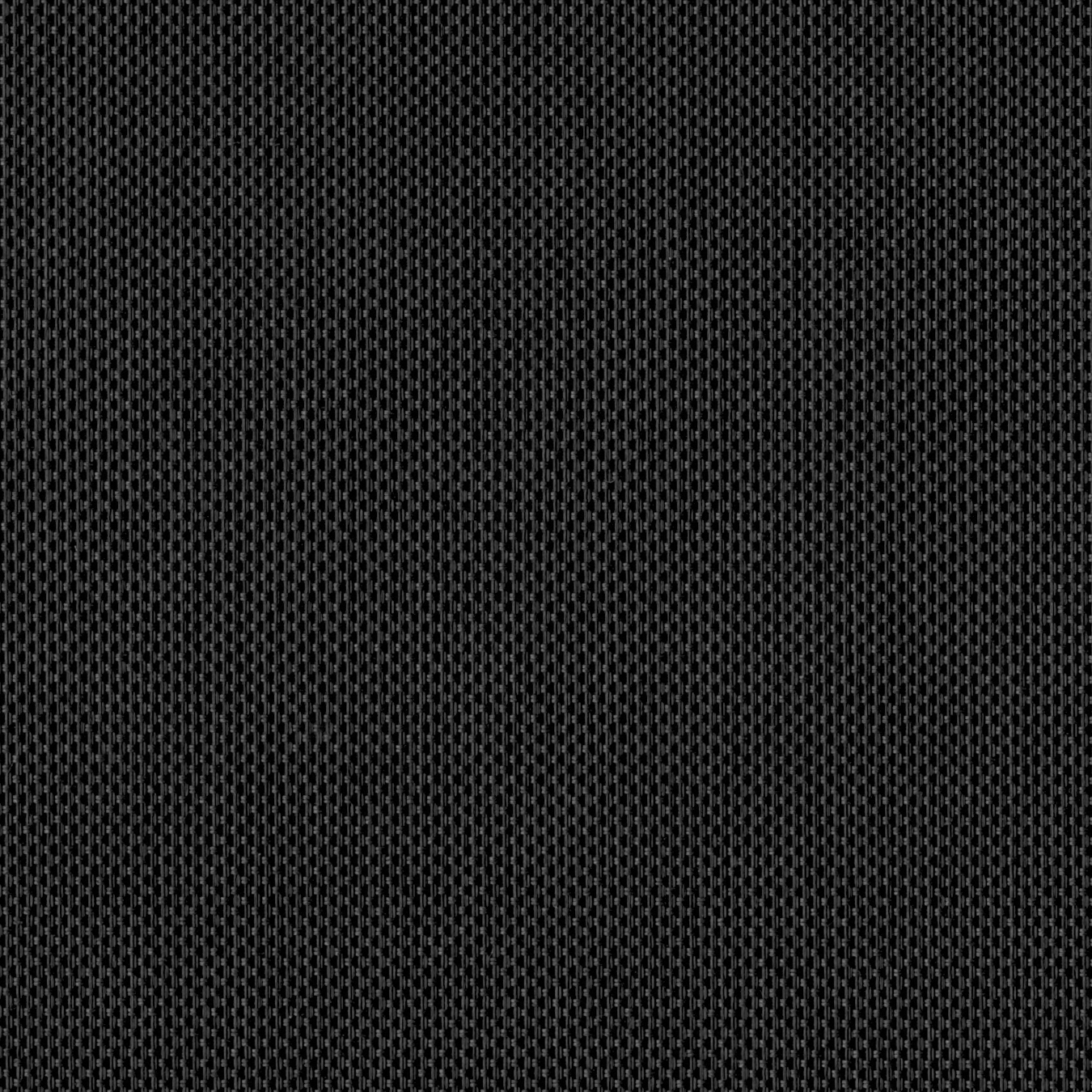

      LV Classics 1%

      M Screen™ 8501

      1% Openness Factor

      SheerWeave® 2500

      SheerWeave® 2701

      SheerWeave® 4800

      SheerWeave® 4901

      SheerWeave® Infinity2™ 1%

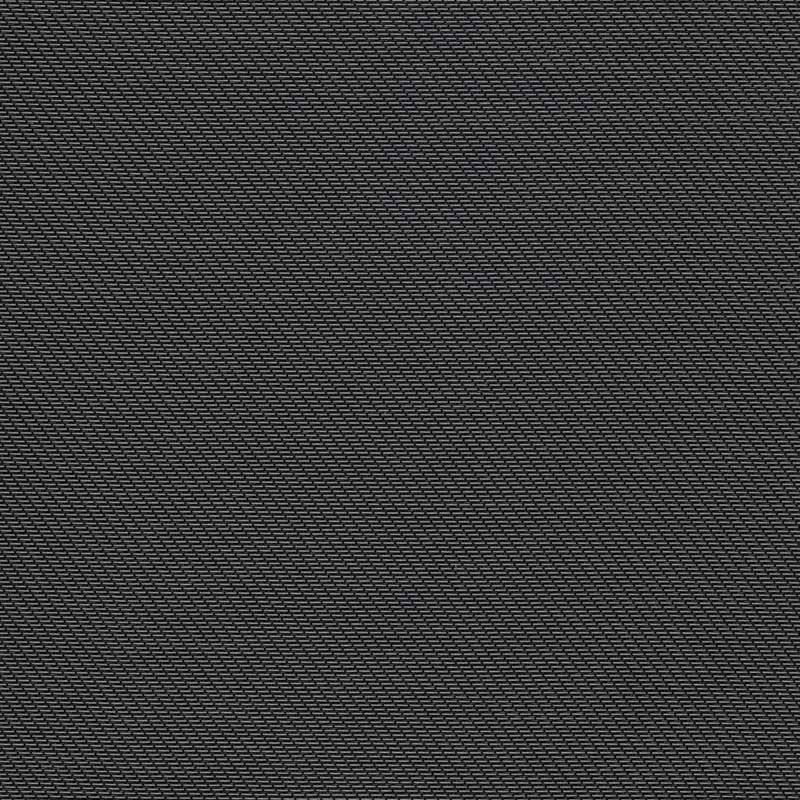

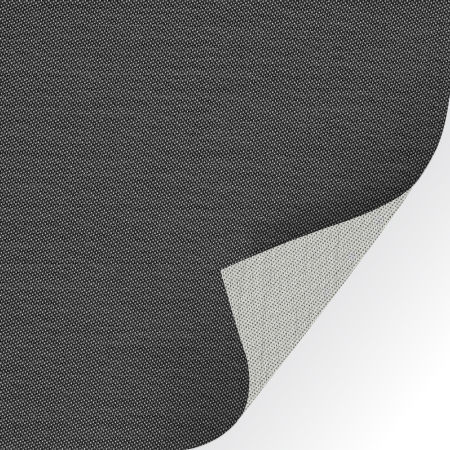

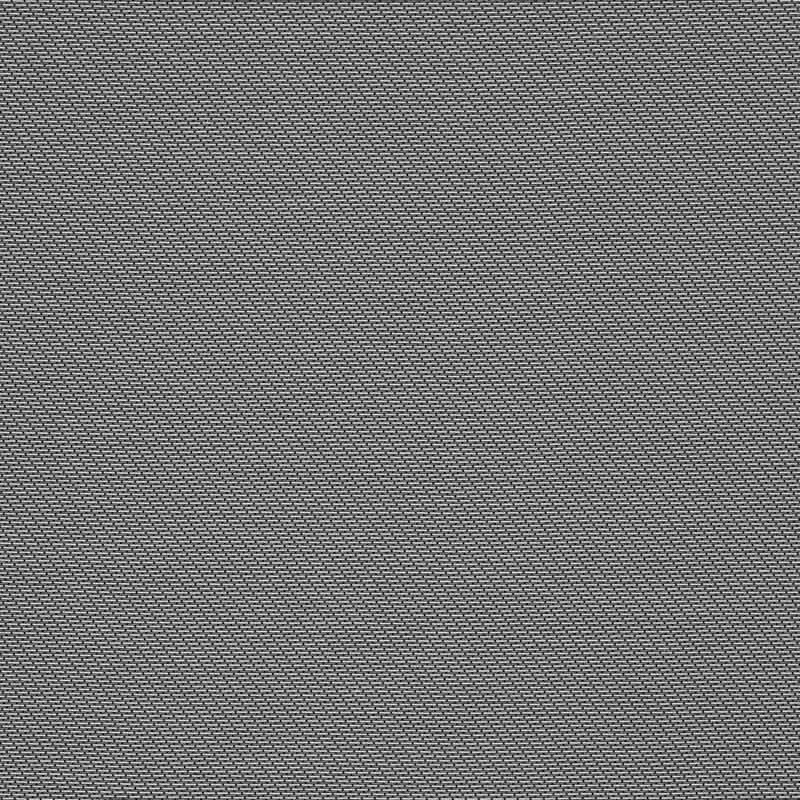

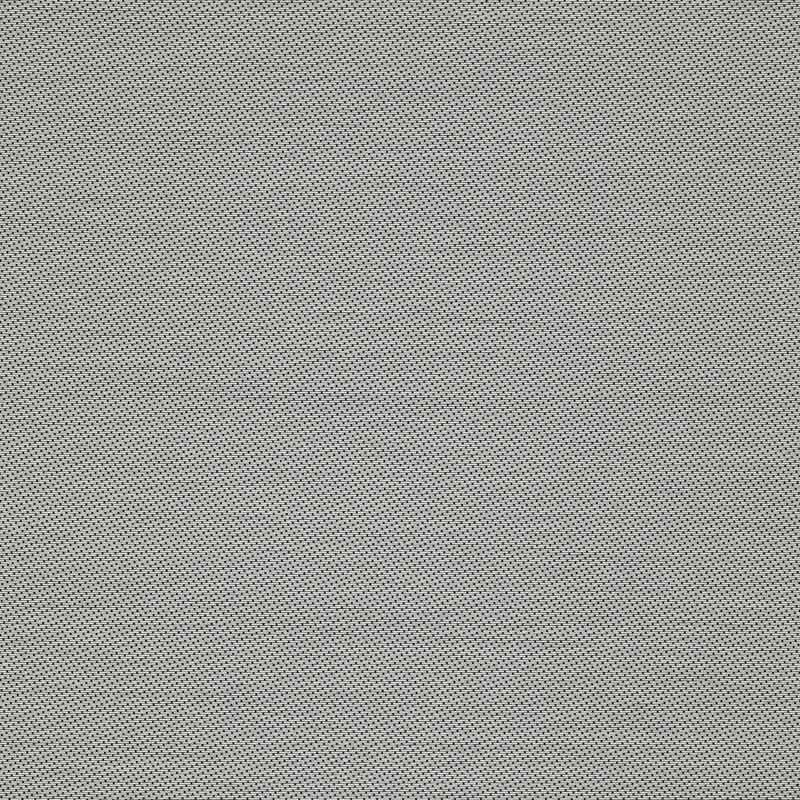

      T Screen™ 1%

      T Screen™ 9701 with KOOLBLACK® Technology 1%

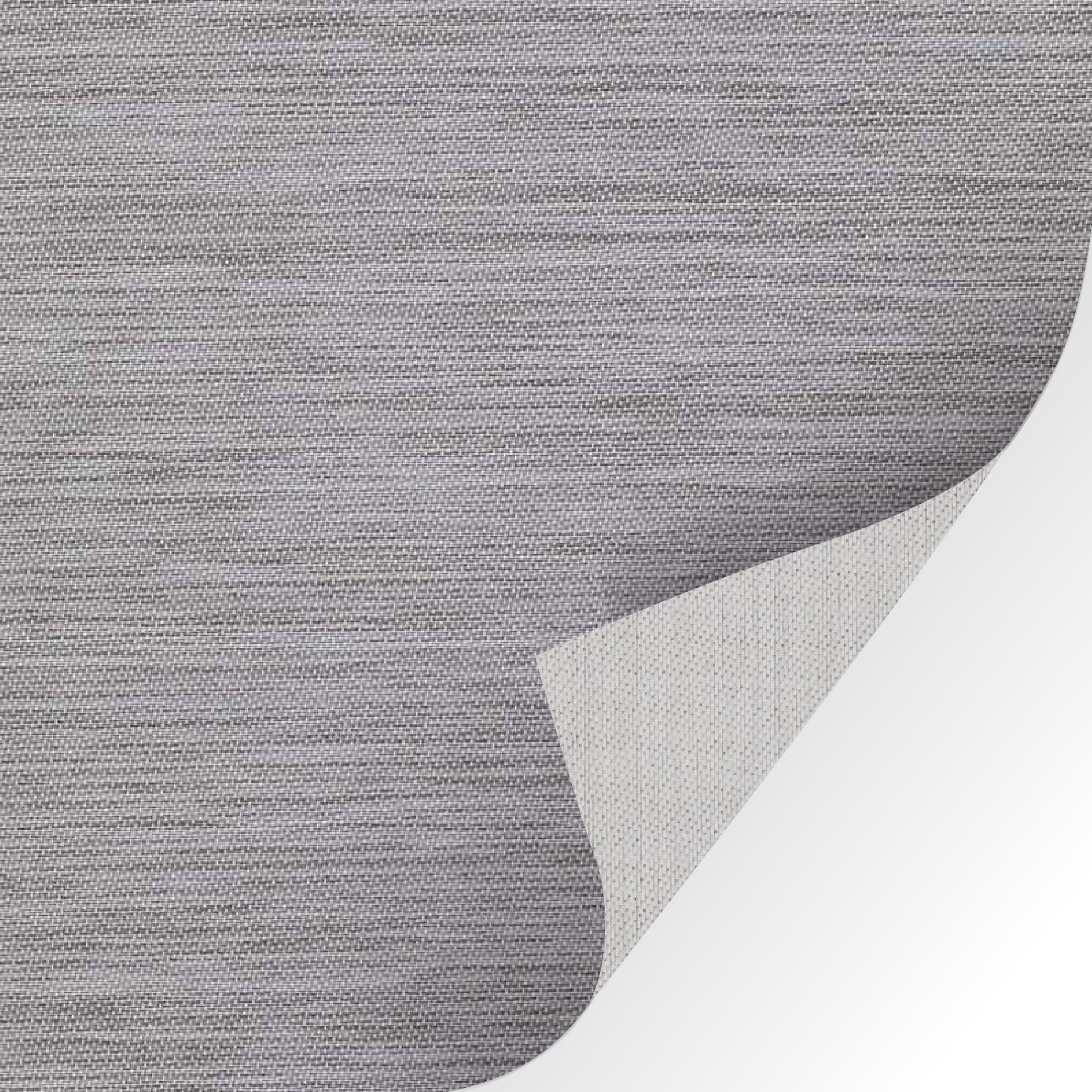

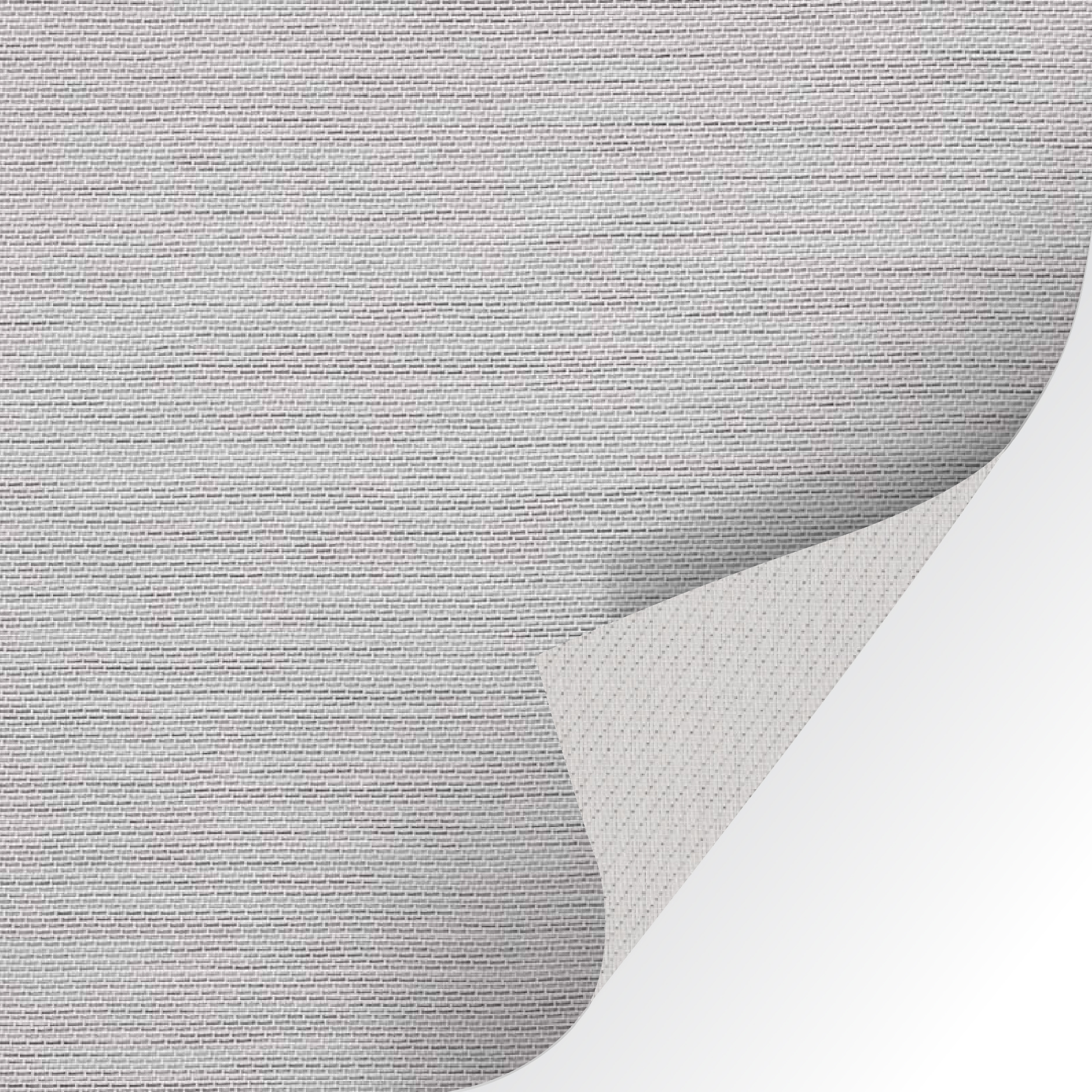

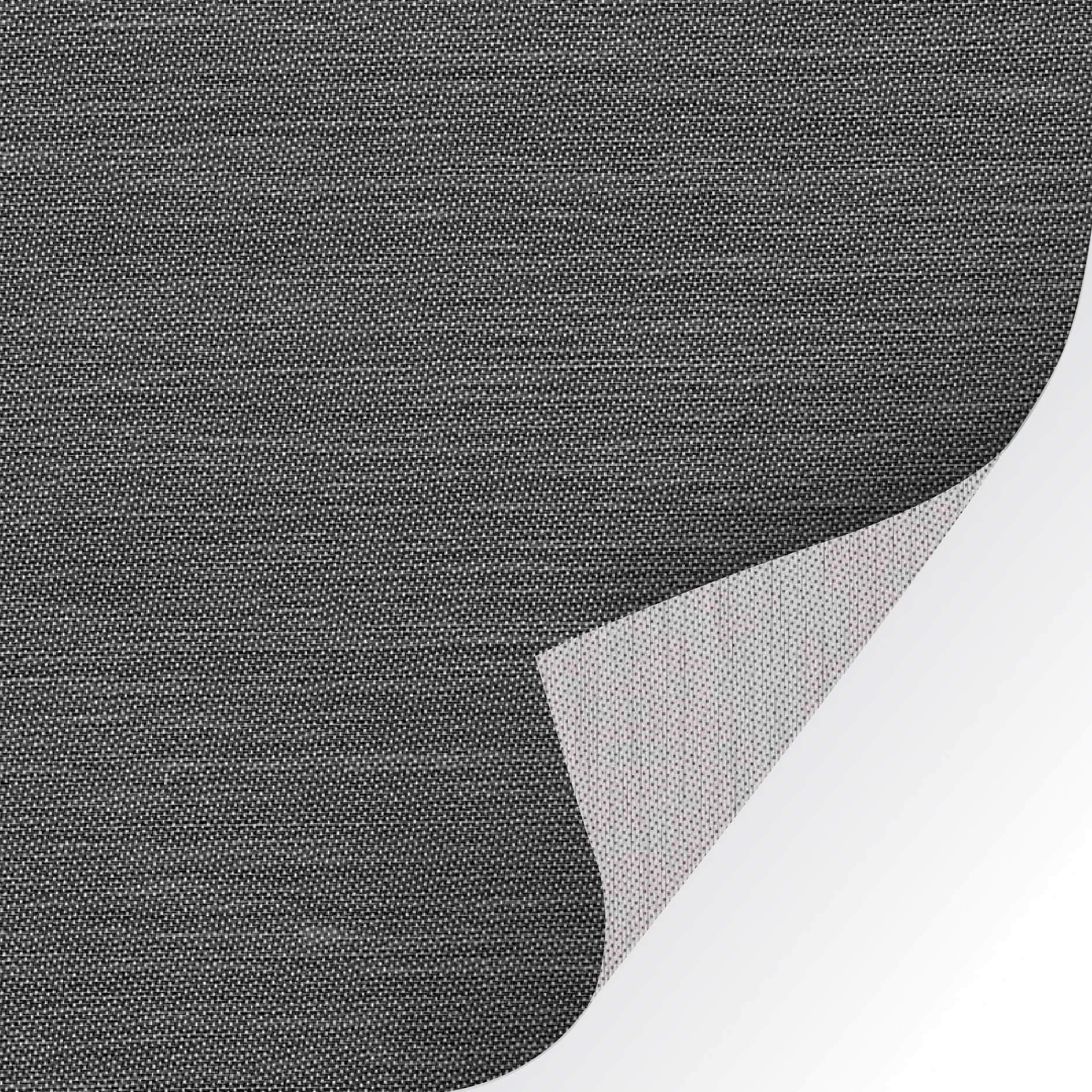

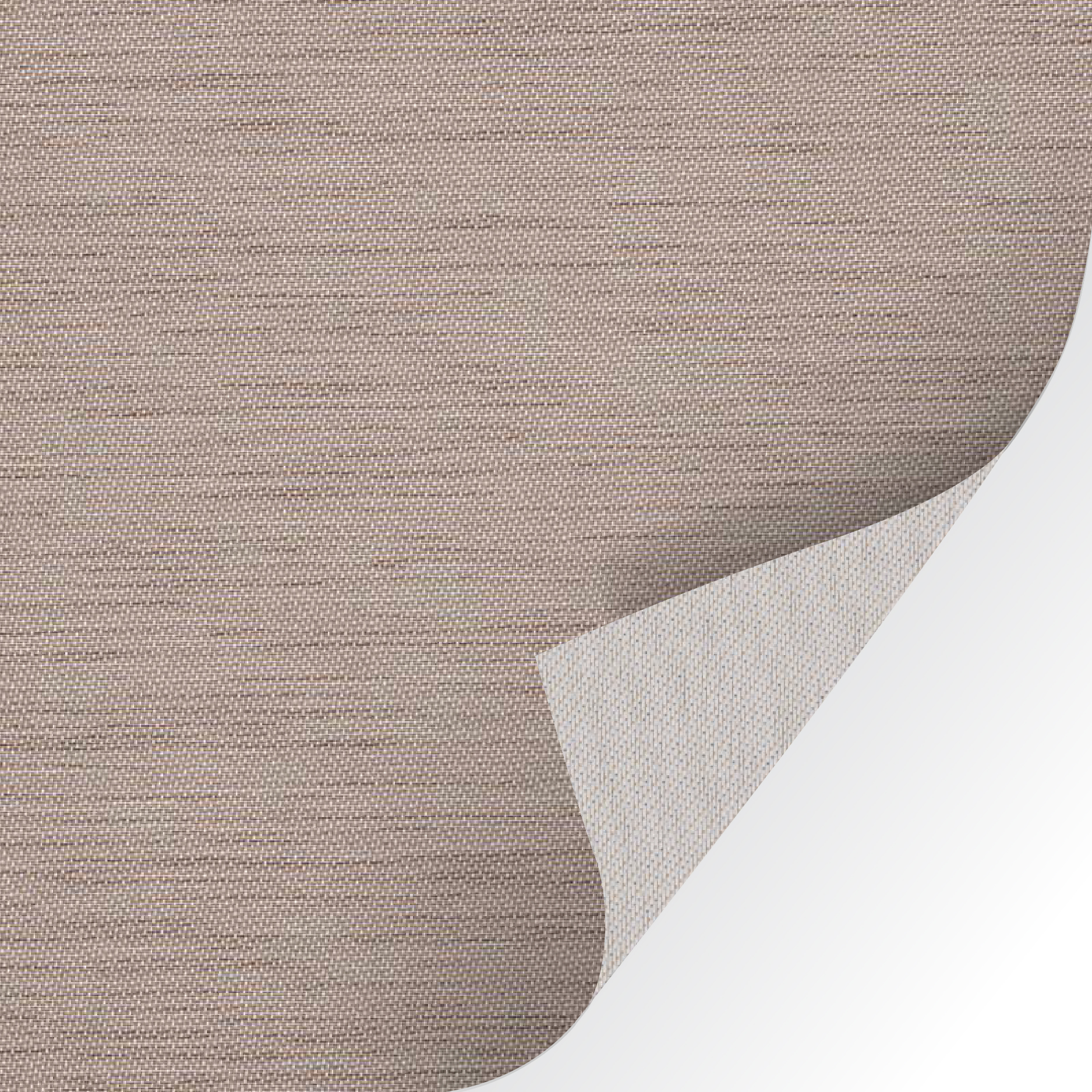

      T Screen™ Deco 1%

      1% Openness Factor

      Vizela™

      3% Openness Factor

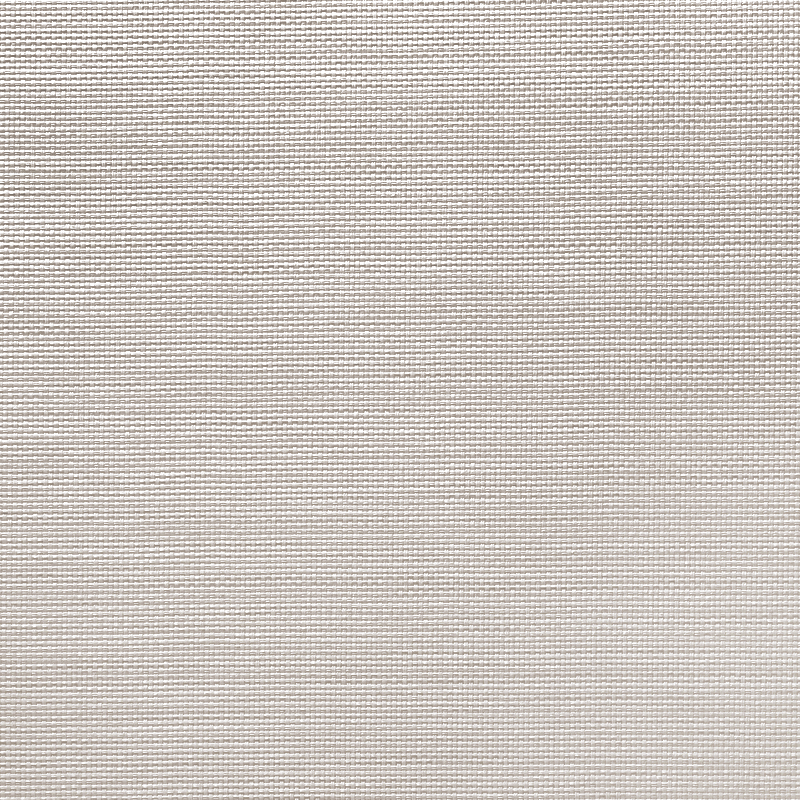

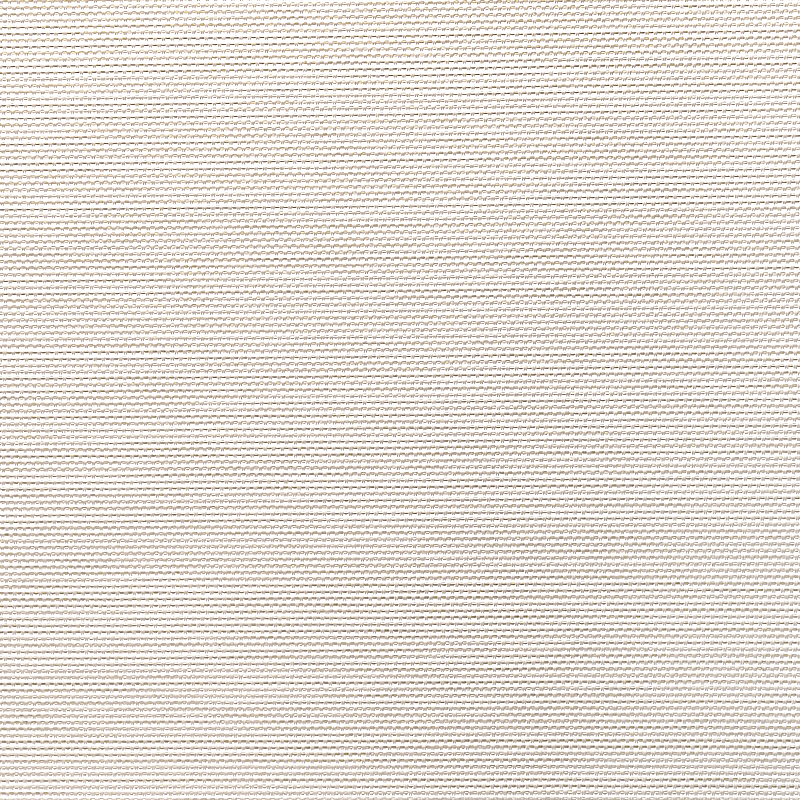

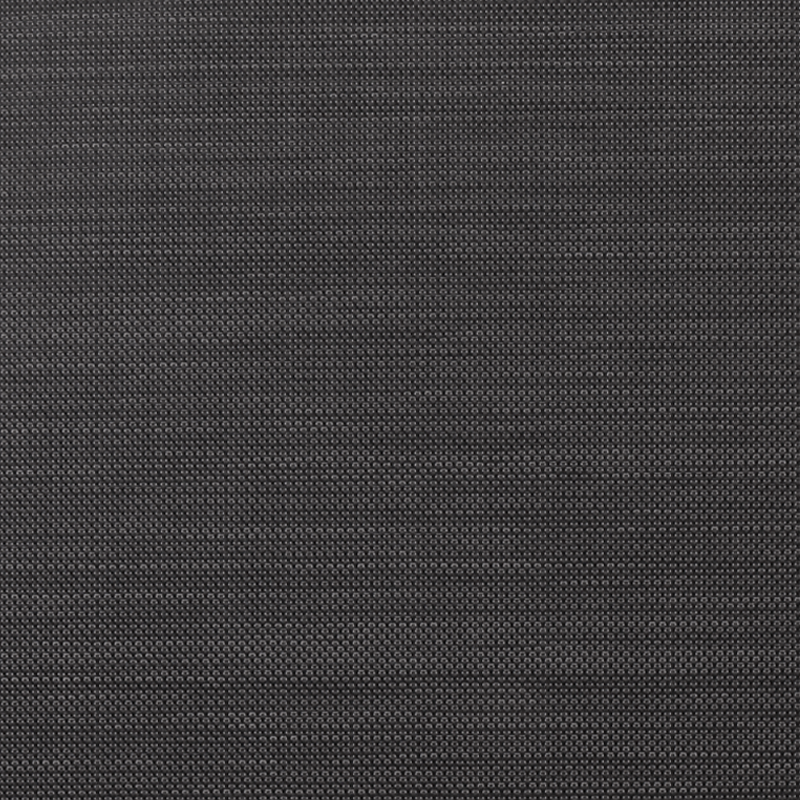

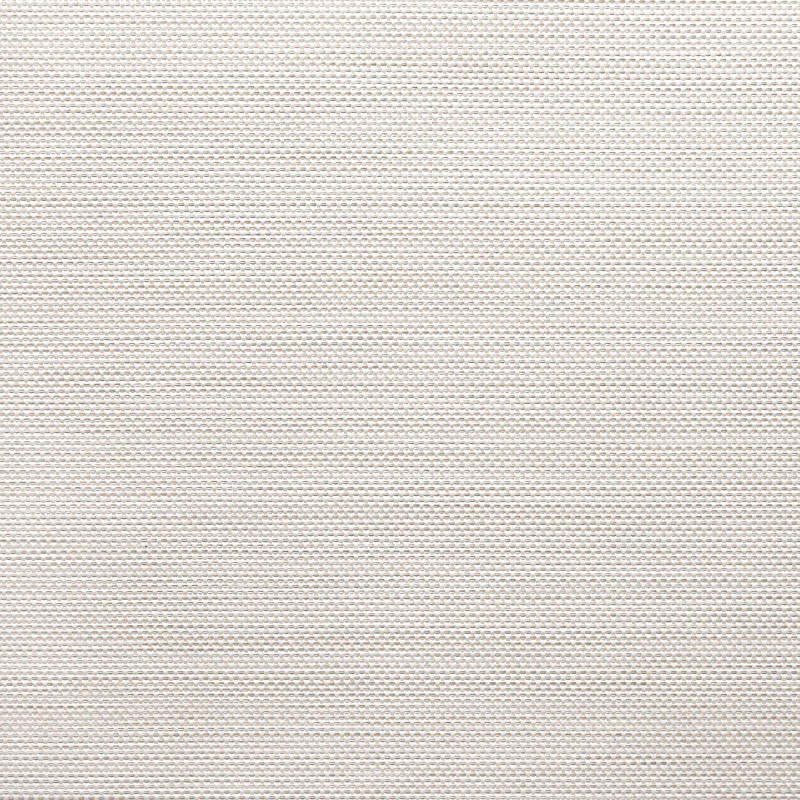

      E Screen Deco™ 3%

      E Screen™ 7503

      E Screen™ 7703 with KOOLBLACK® Technology

      GlacierScreen+ Basketweave 3%

      GlacierScreen+ Twill 3%

      GreenScreen Evolve®

      LV Classics 3%

      M Screen Deco™ 3%

      3% Openness Factor

      M Screen™ 8503

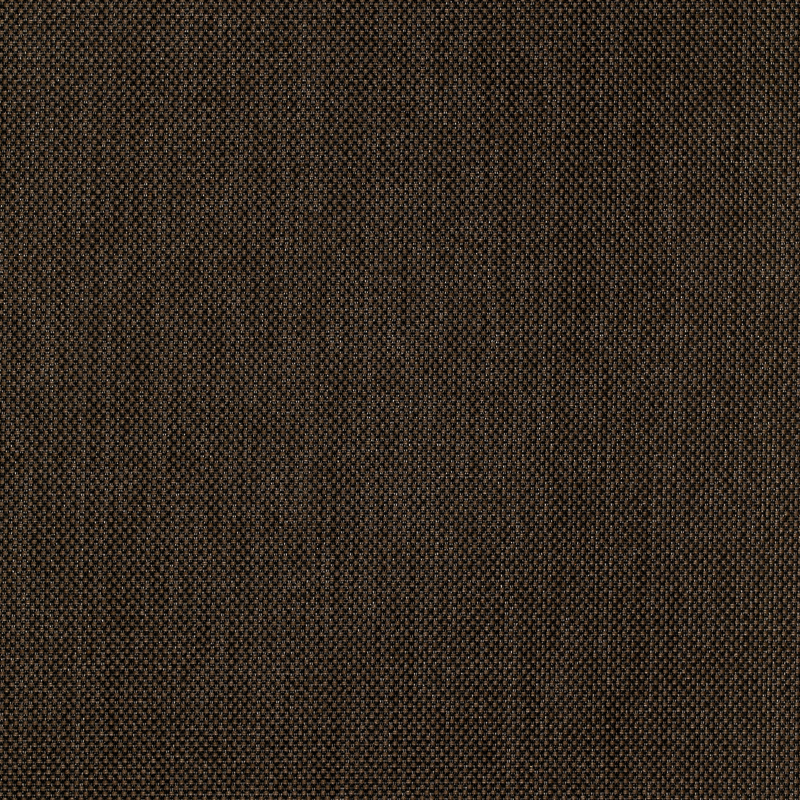

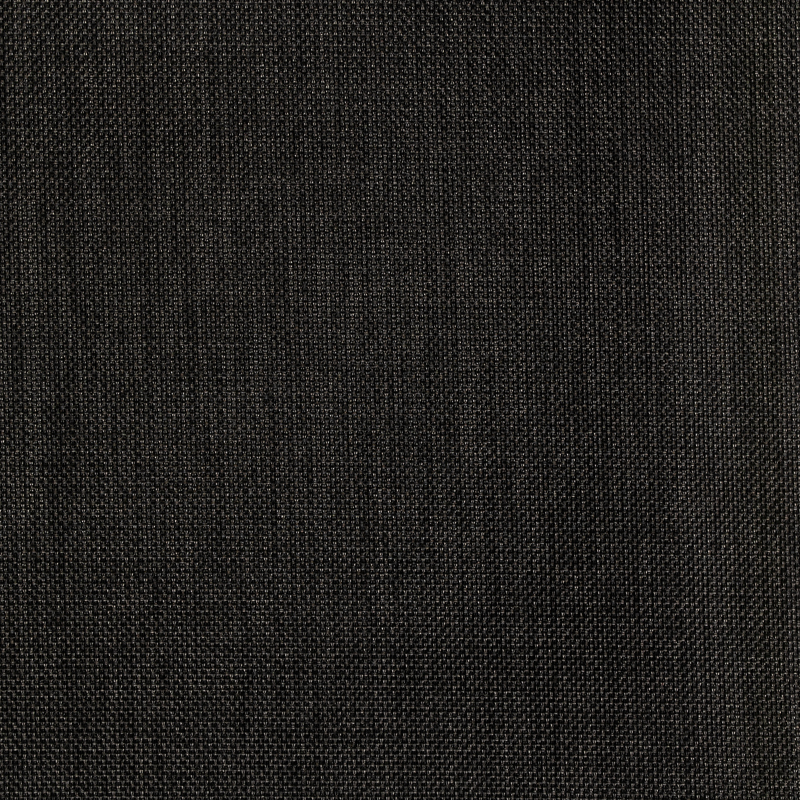

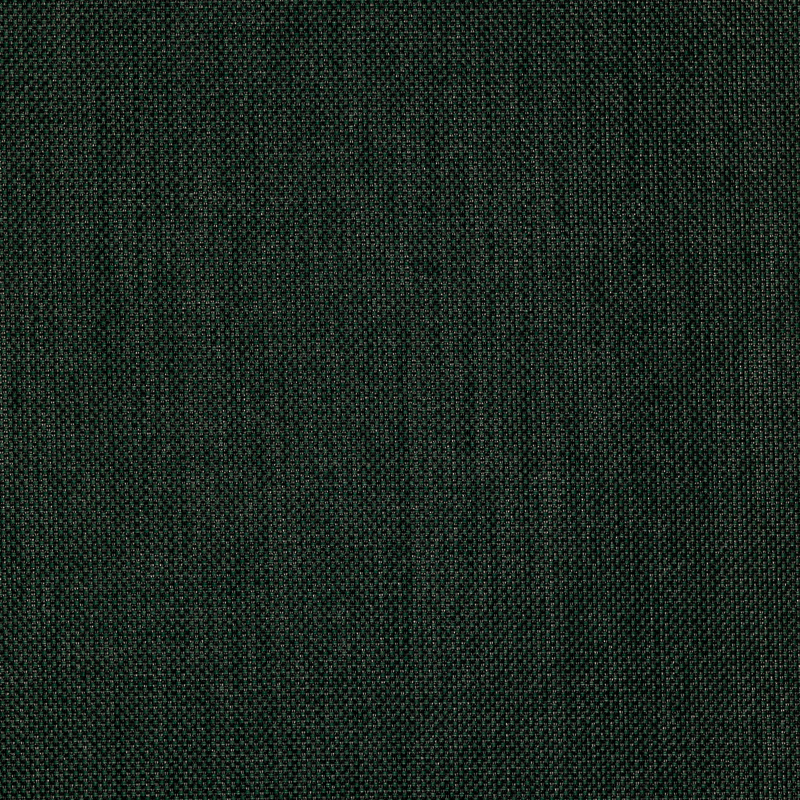

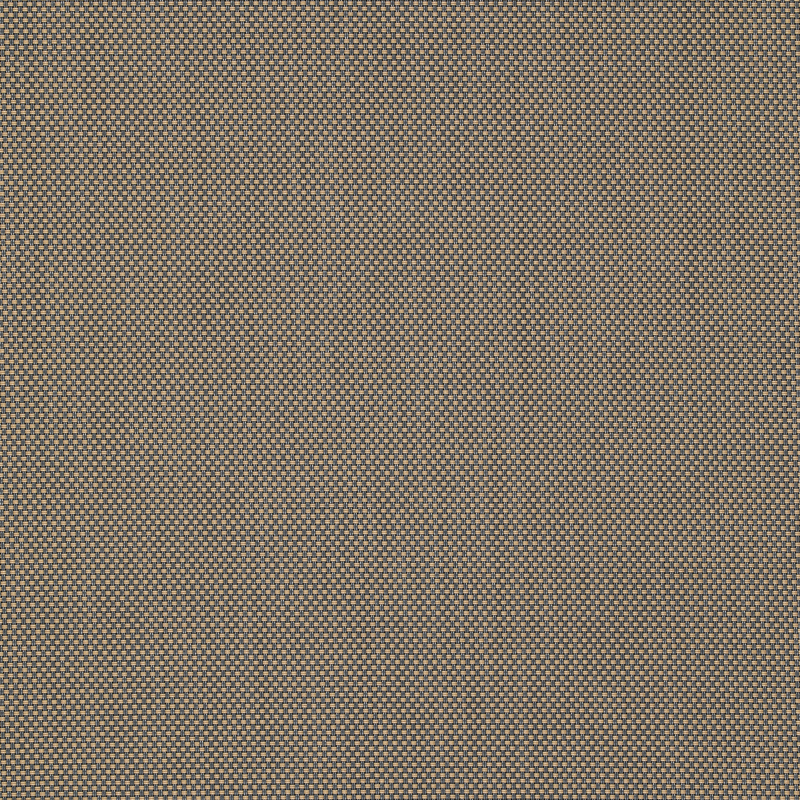

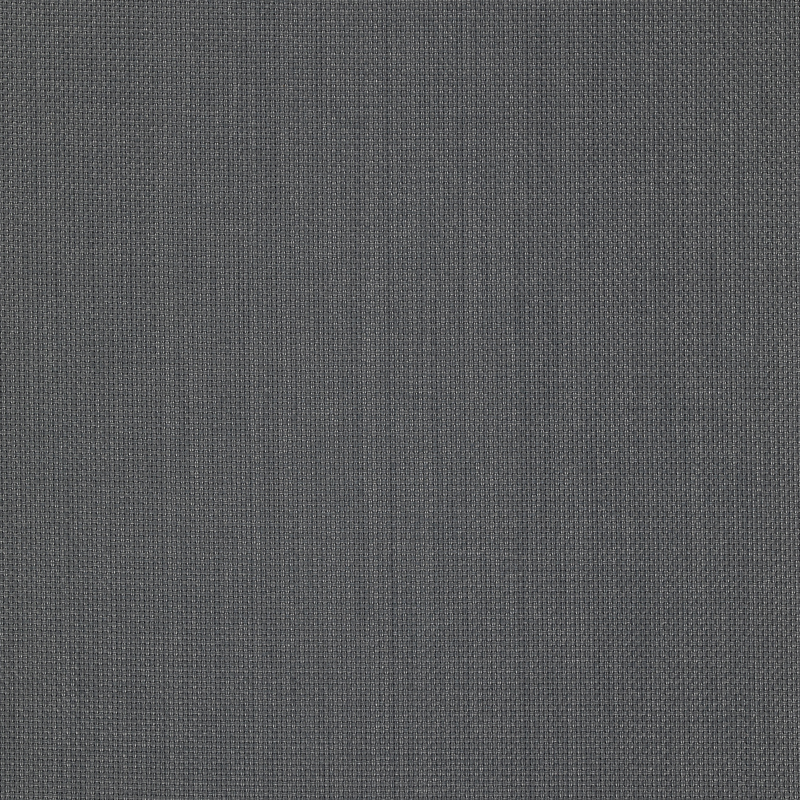

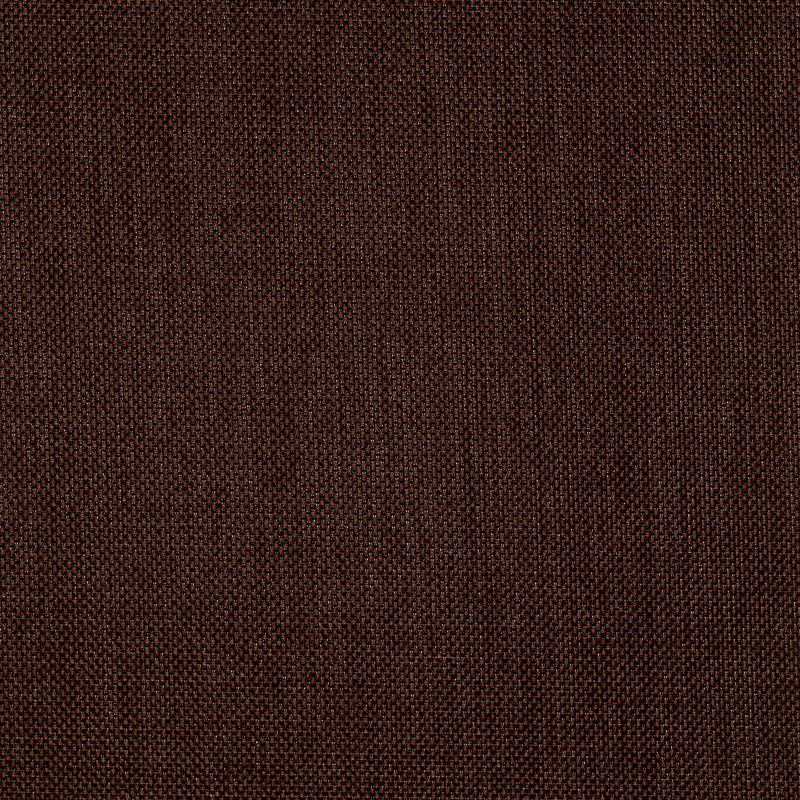

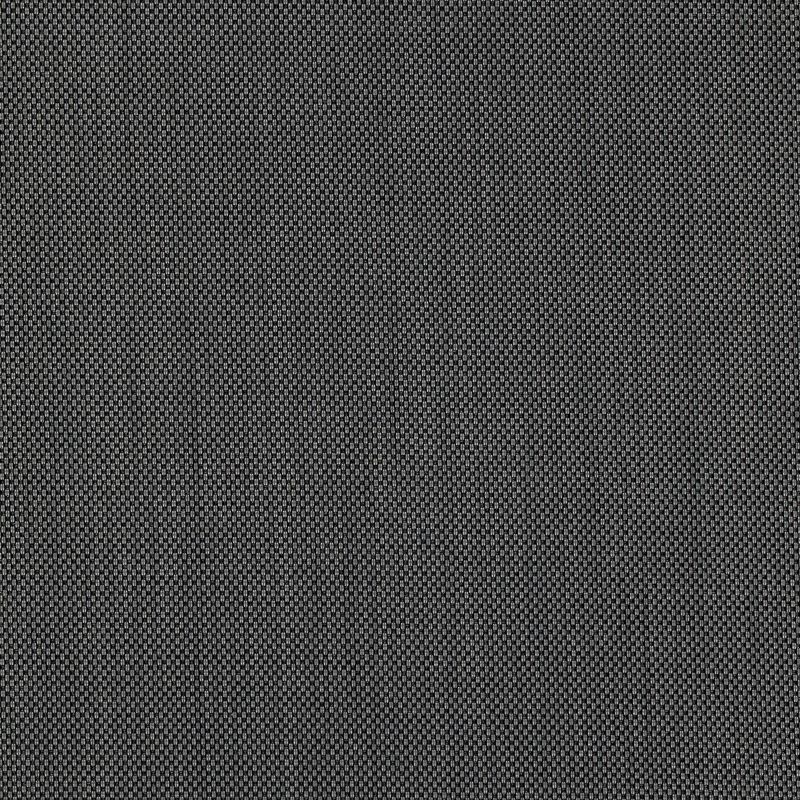

      Natté™ 3%

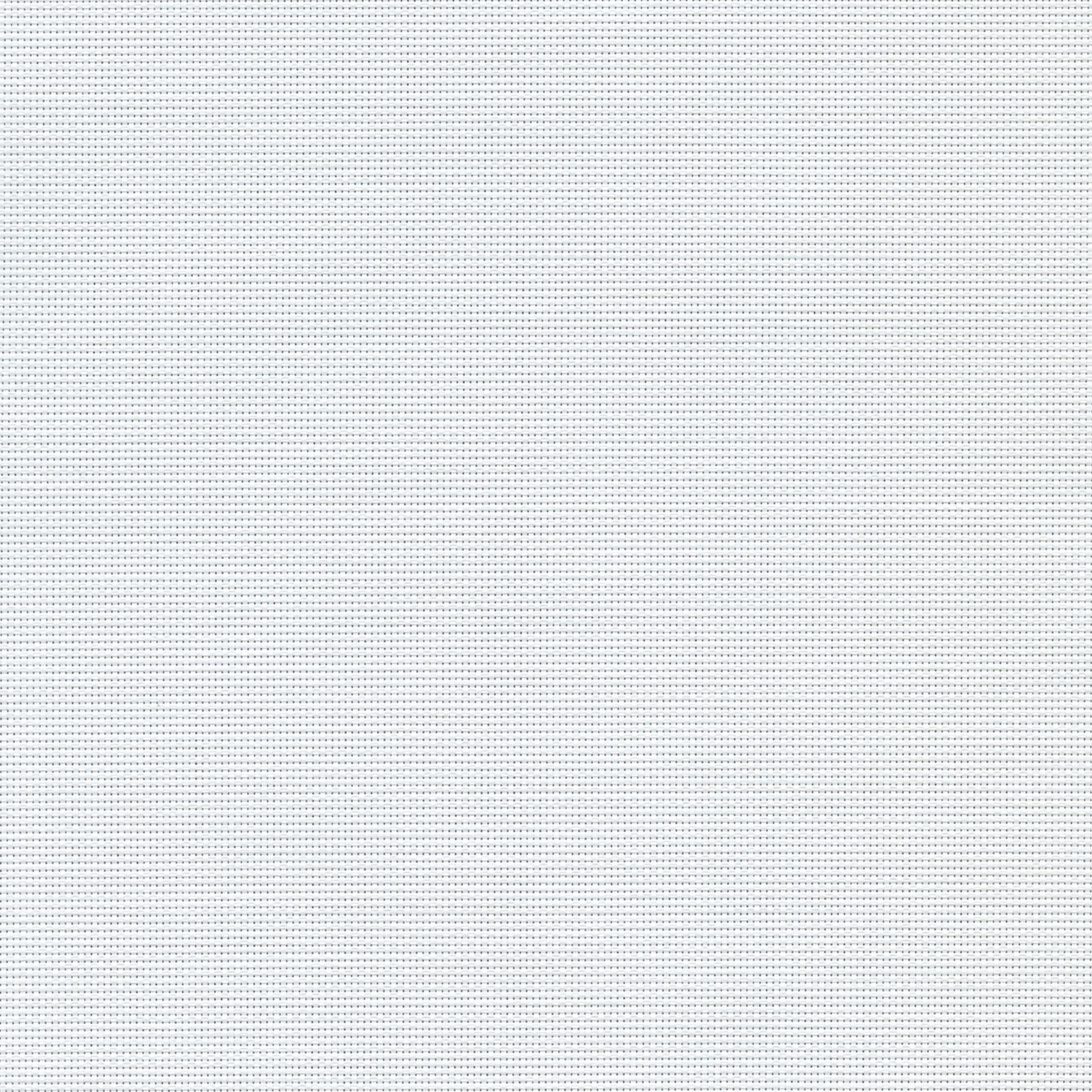

      SheerWeave® 2410

      SheerWeave® 2703

      SheerWeave® 4400

      SheerWeave® 4600

      SheerWeave® 4650

      SheerWeave® 4903

      3% Openness Factor

      SheerWeave® 8000

      SheerWeave® Infinity2™ 3%

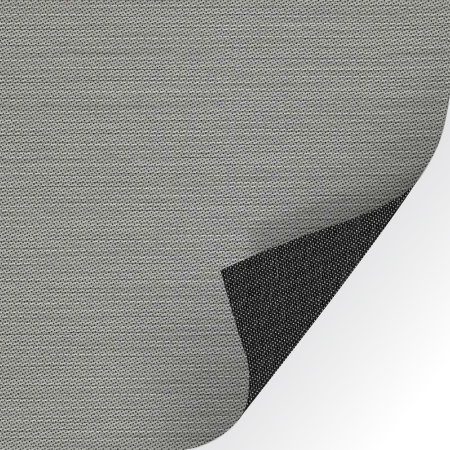

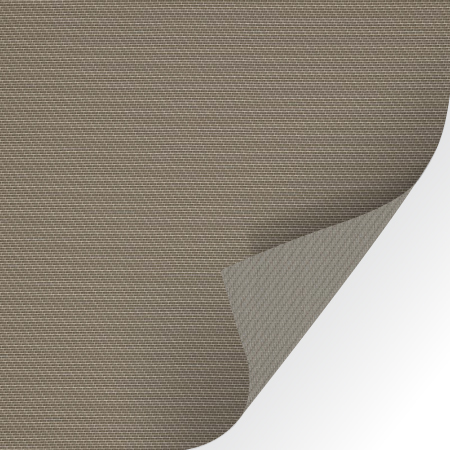

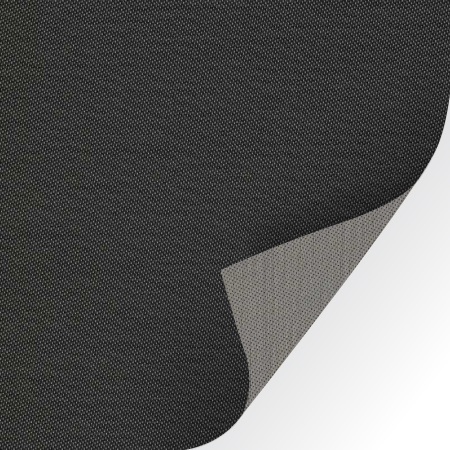

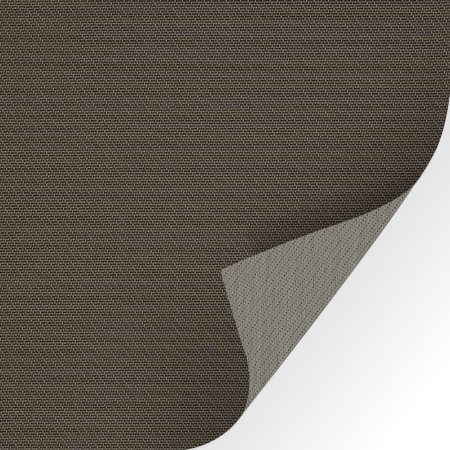

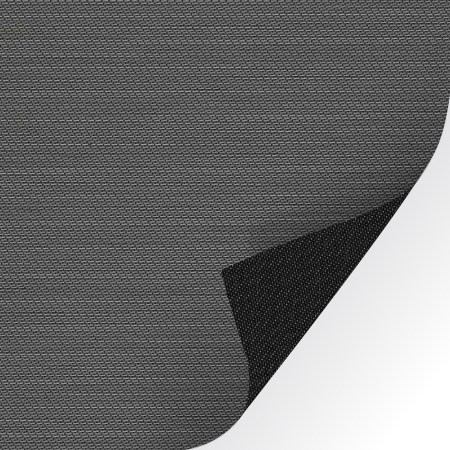

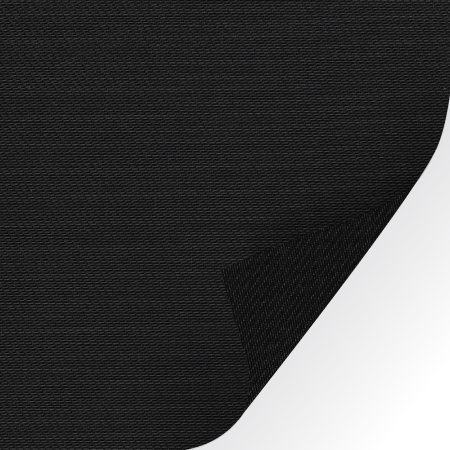

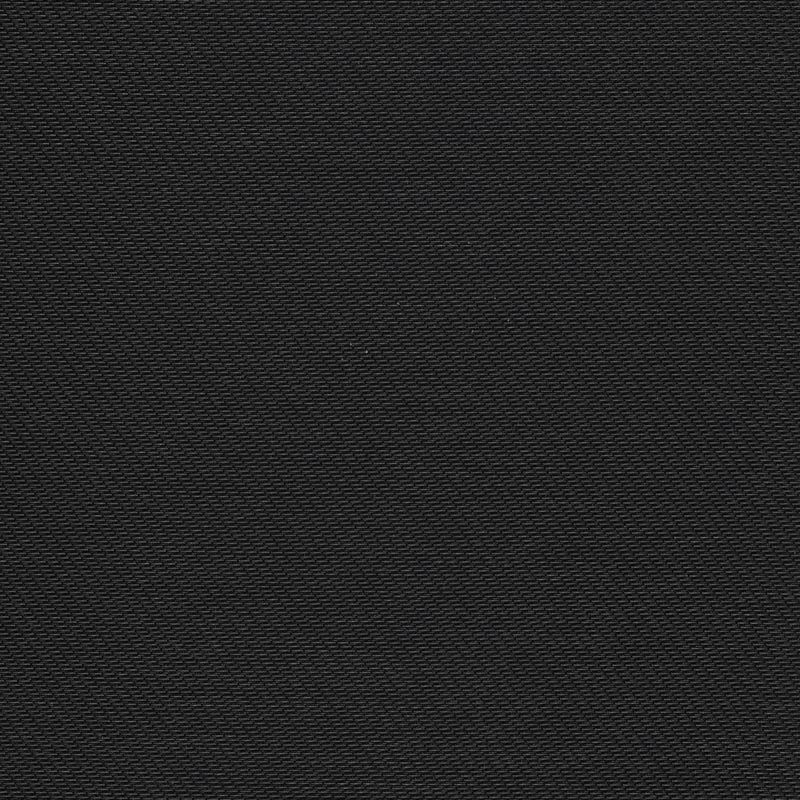

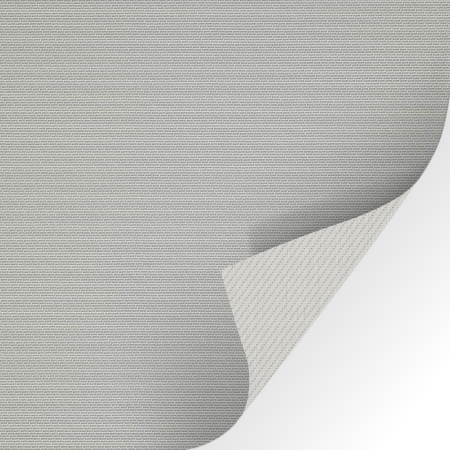

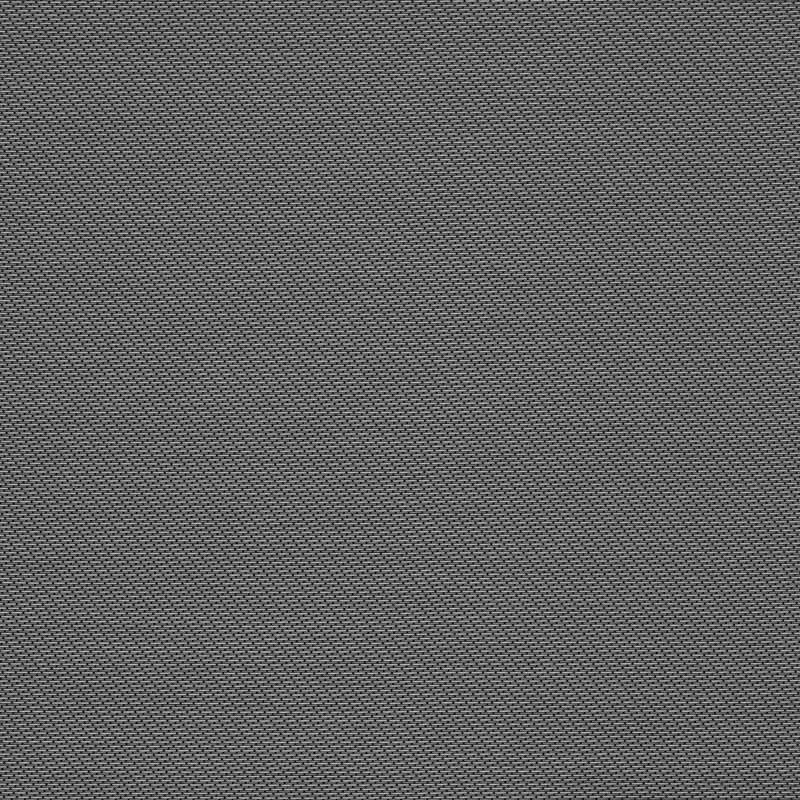

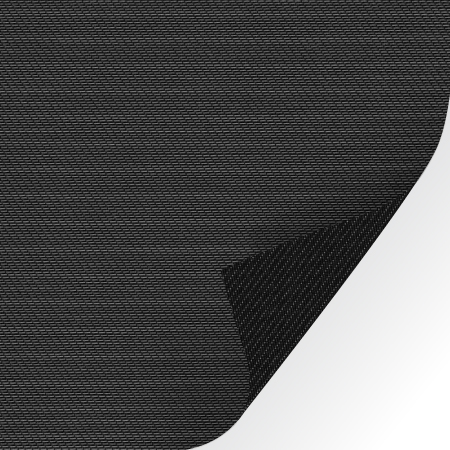

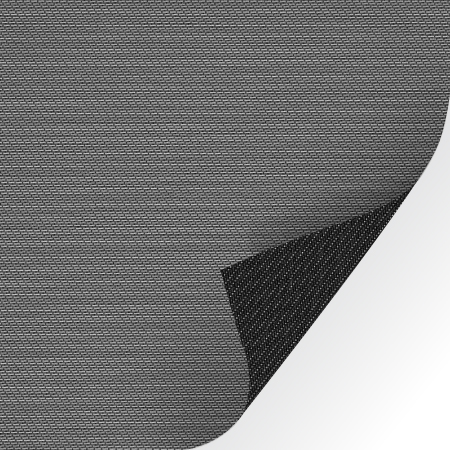

      T Screen™ 3%

      T Screen™ 9703 with KOOLBLACK® Technology 3%

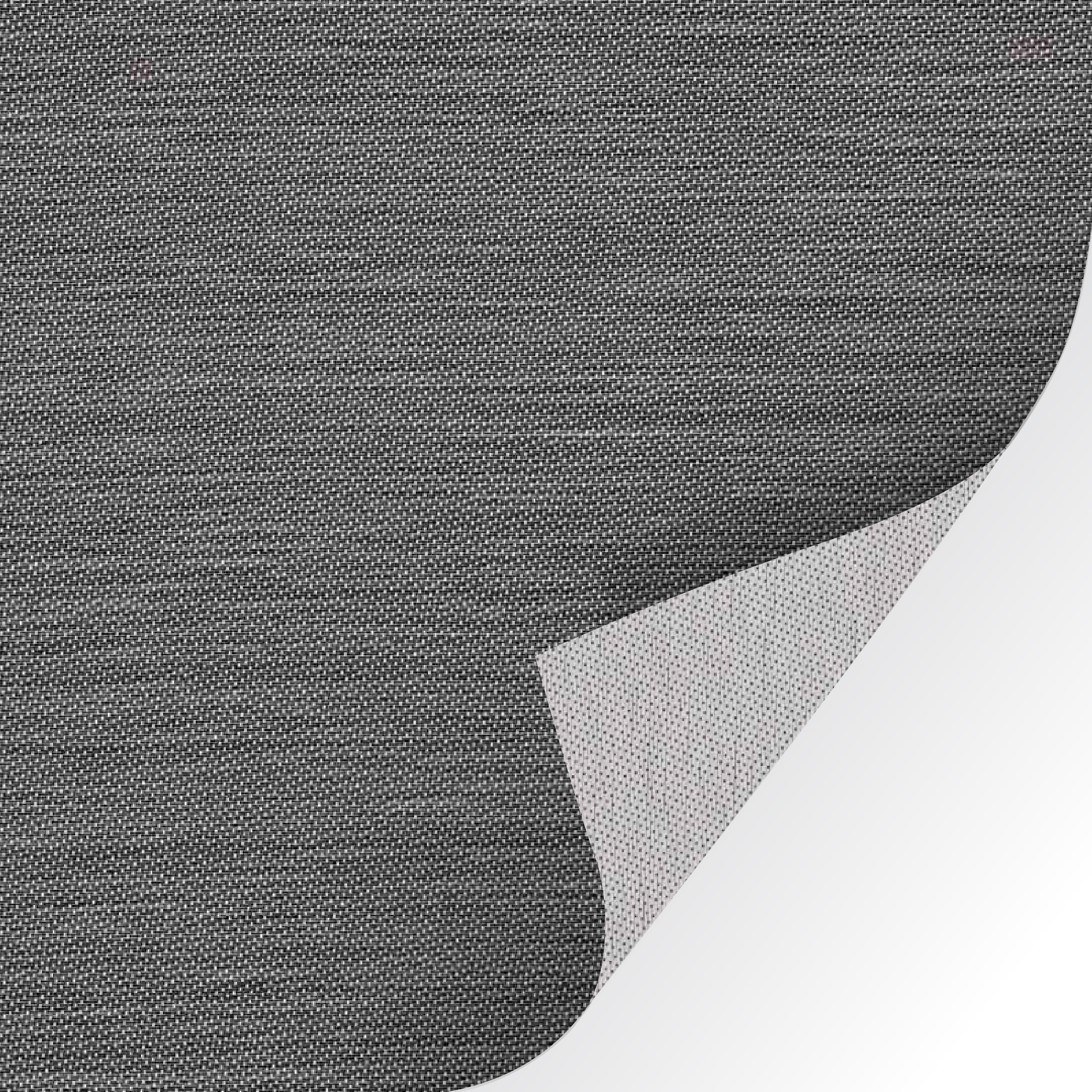

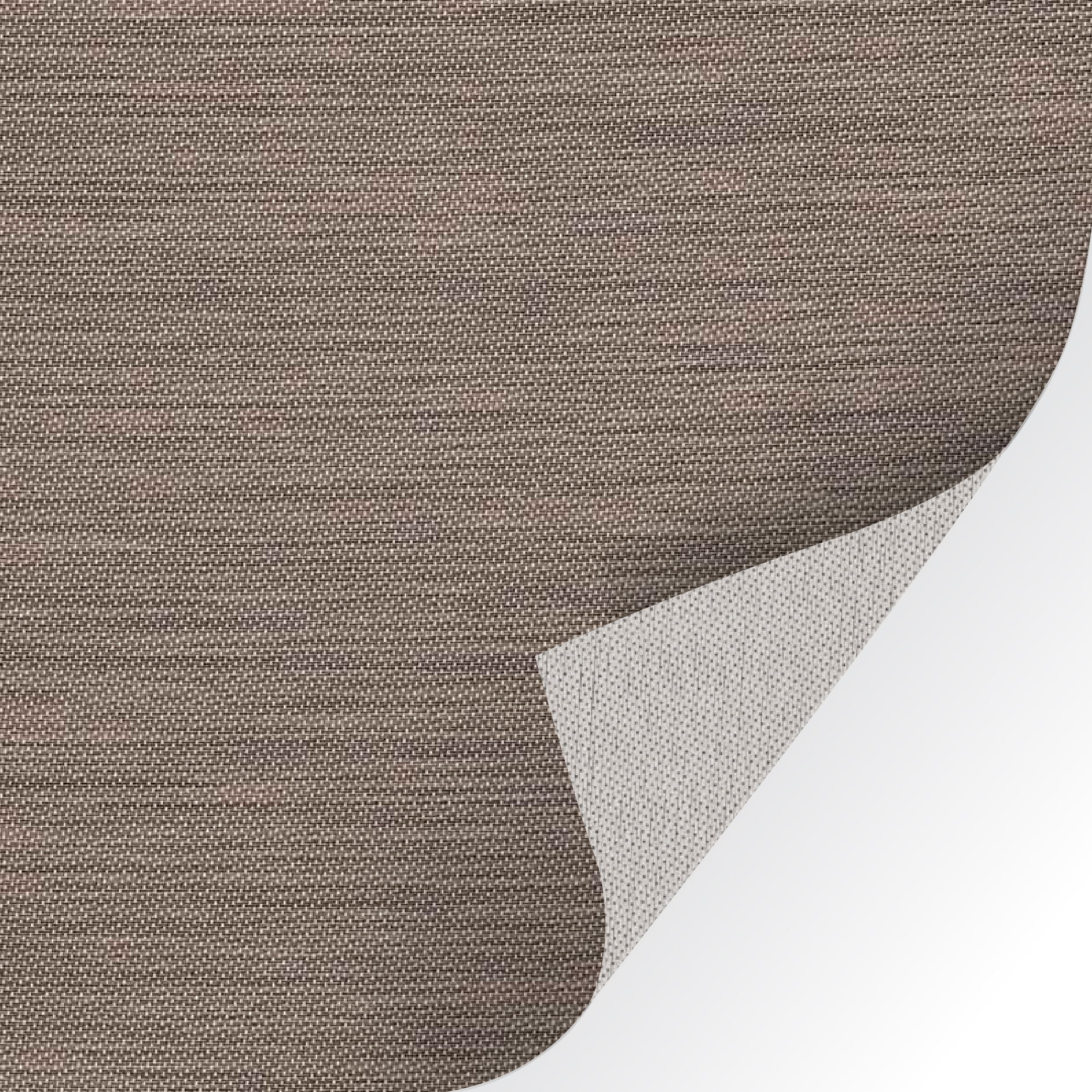

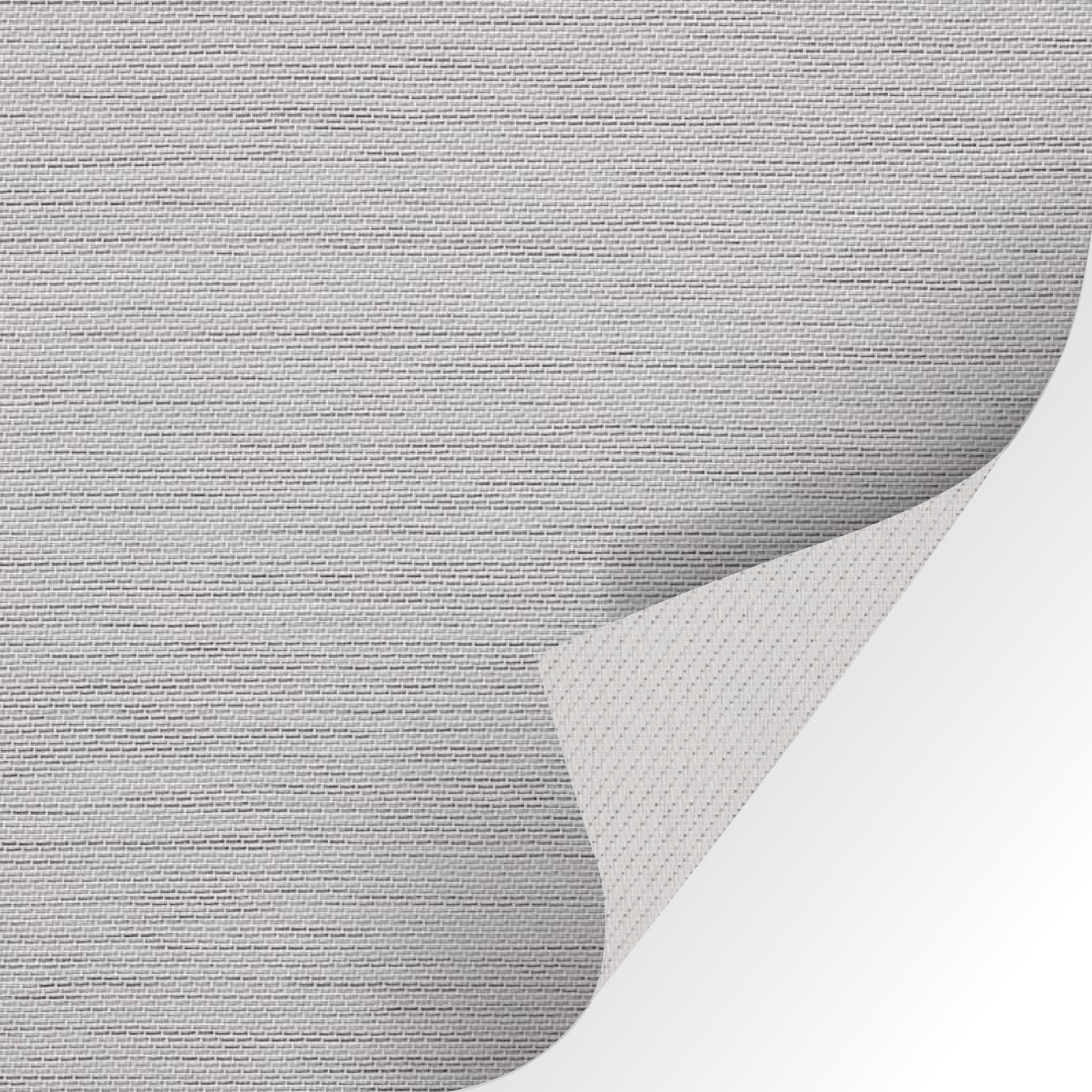

      T Screen™ Deco 3%

      5% Openness Factor

      E Screen™ 7505

      E Screen™ 7705 with KOOLBLACK® Technology

      GlacierScreen+ Basketweave 5%

      GreenScreen Revive® 5%

      LV Classics 5%

      M Screen Deco™ 5%

      M Screen™ 8505

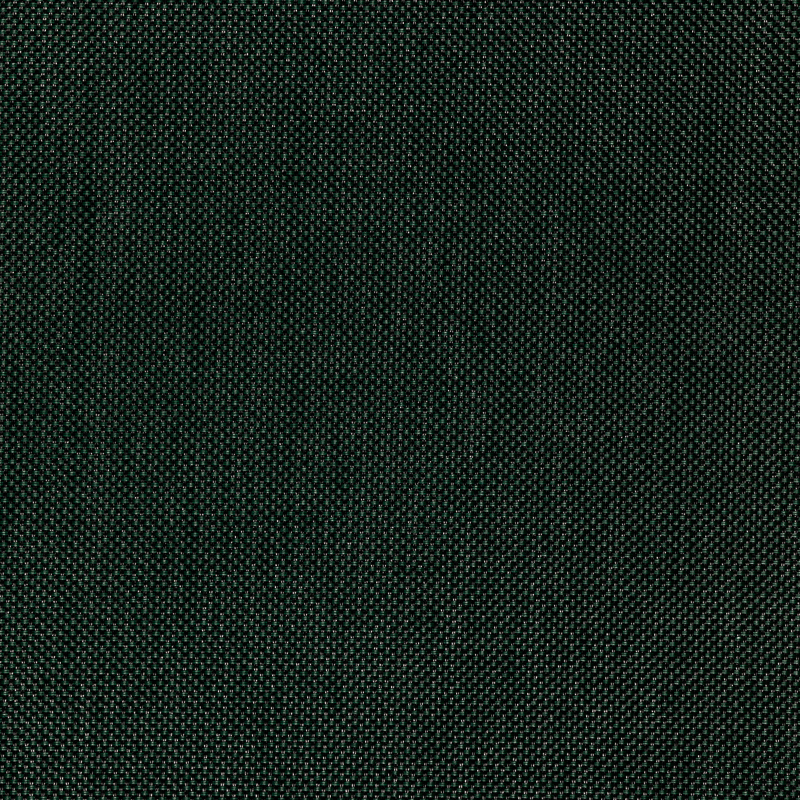

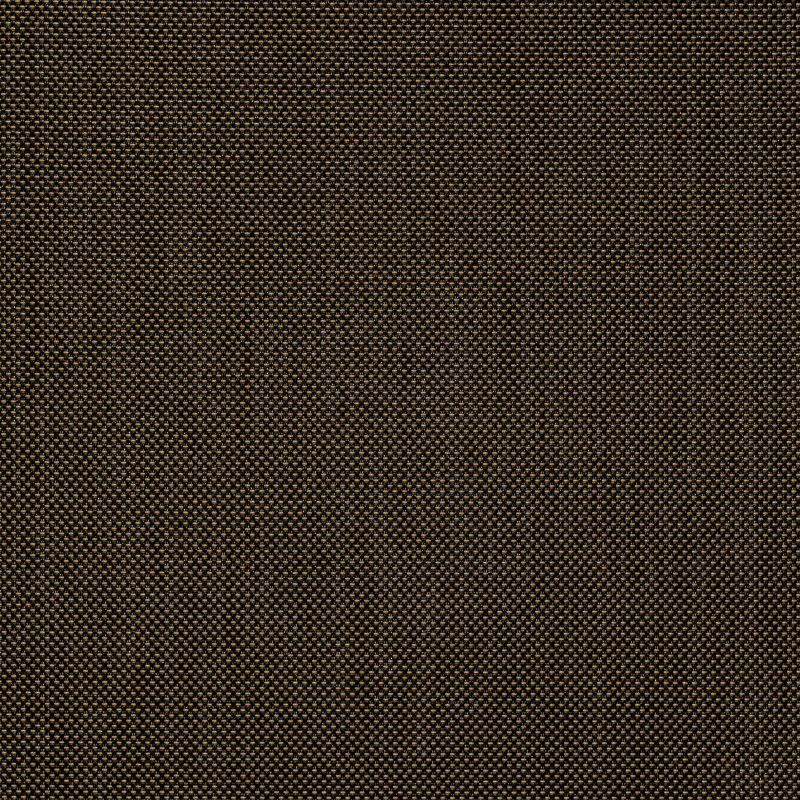

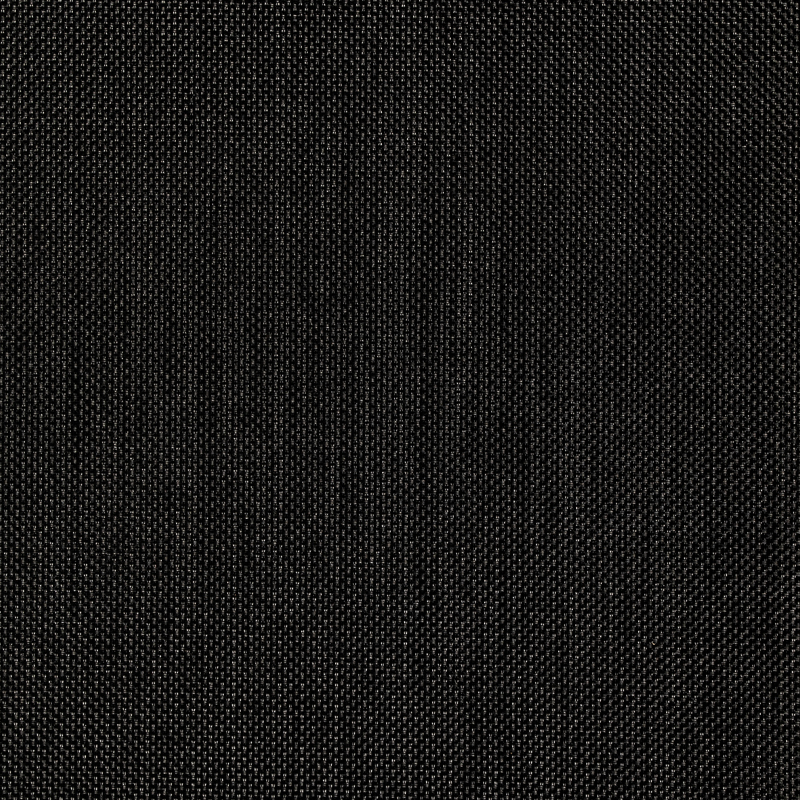

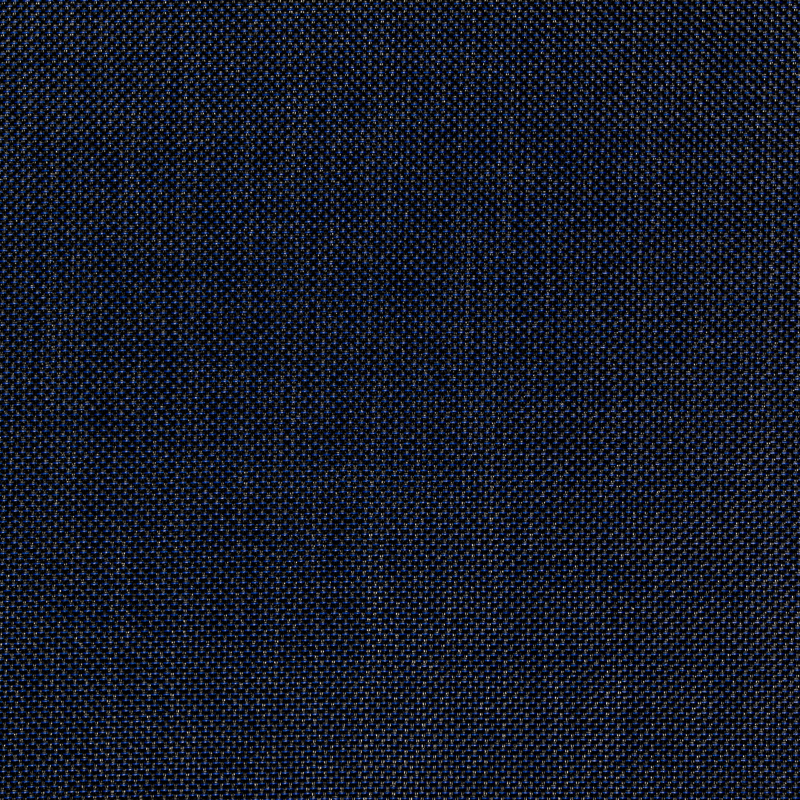

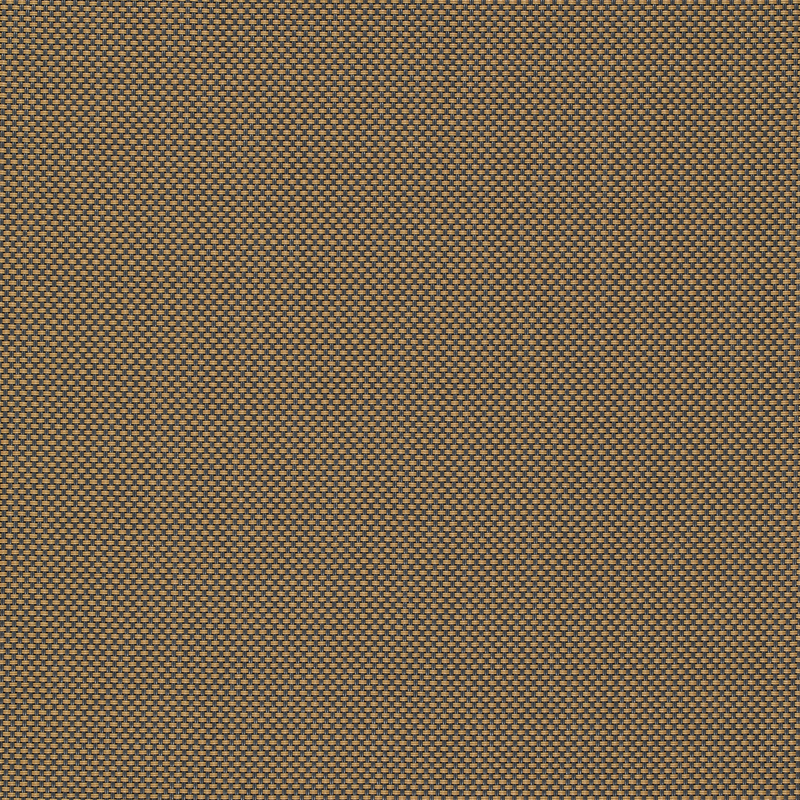

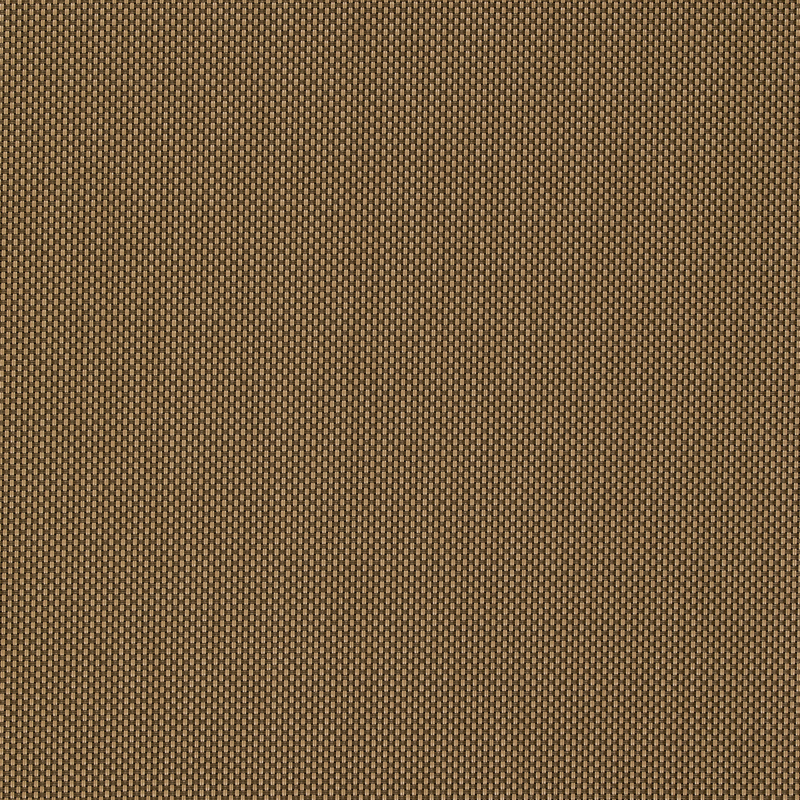

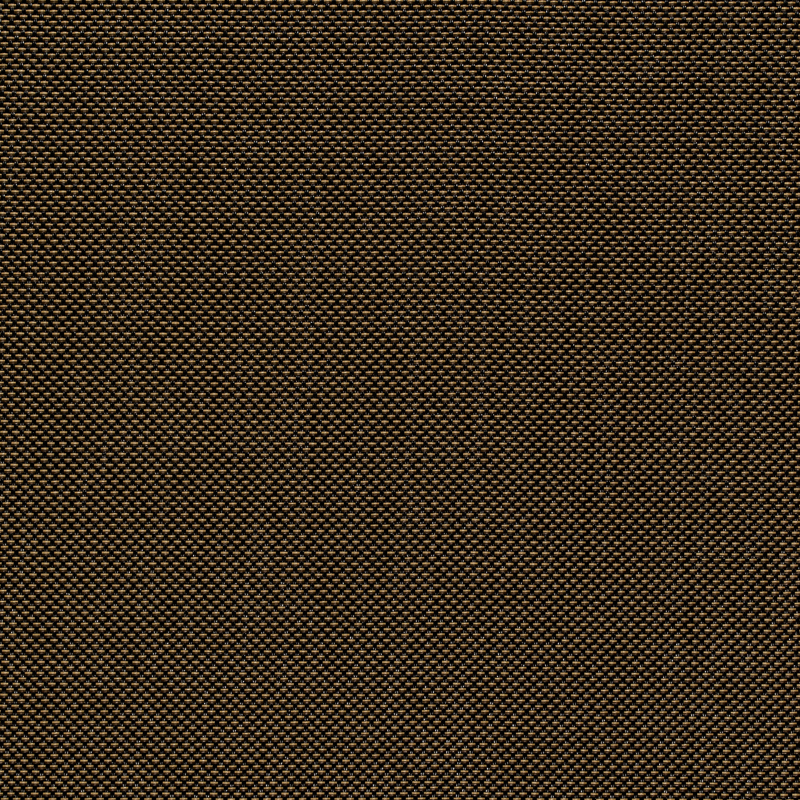

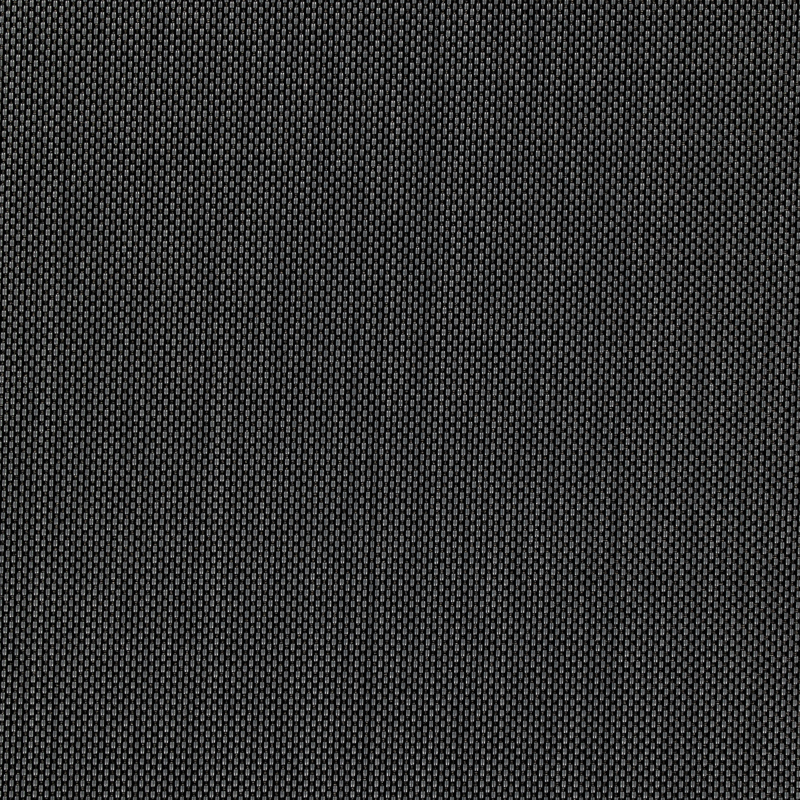

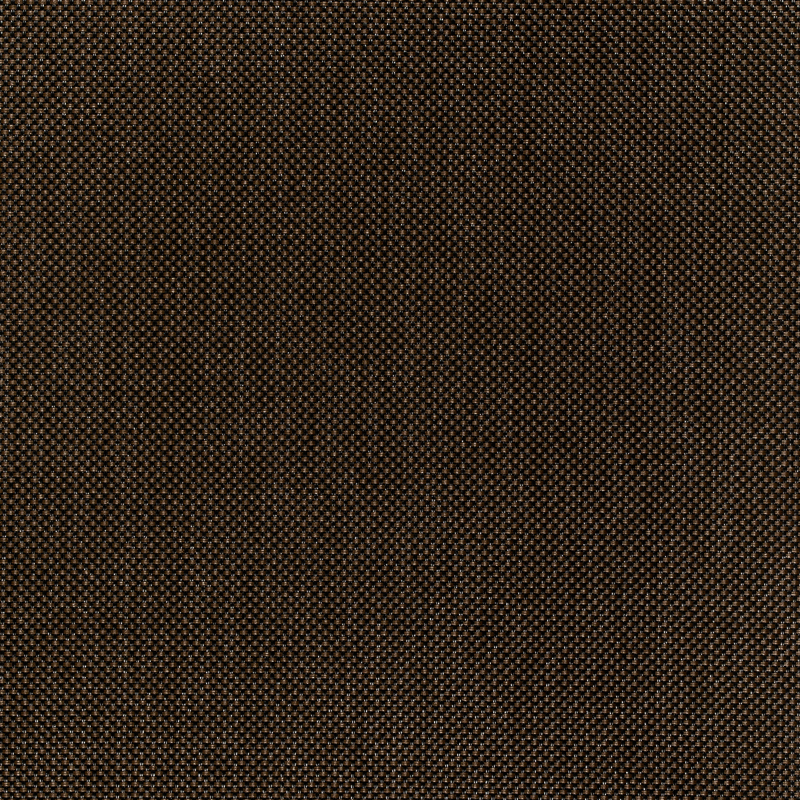

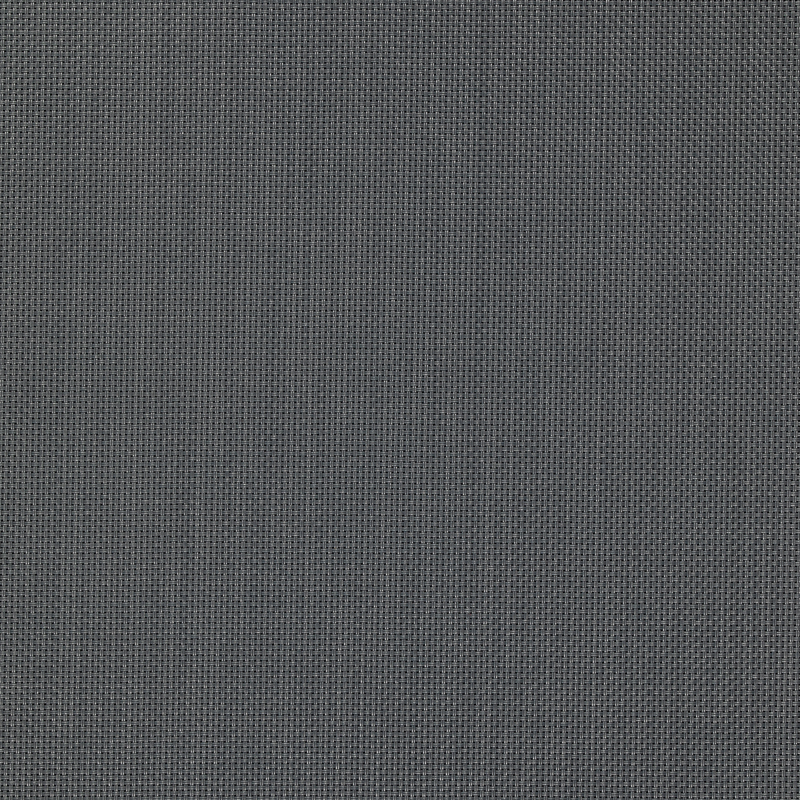

      Natté™ 5%

      5% Openness Factor

      SheerWeave® 2000

      SheerWeave® 2390

      SheerWeave® 2705

      SheerWeave® 4000

      SheerWeave® 4500

      SheerWeave® 4550

      SheerWeave® Infinity2™ 5%

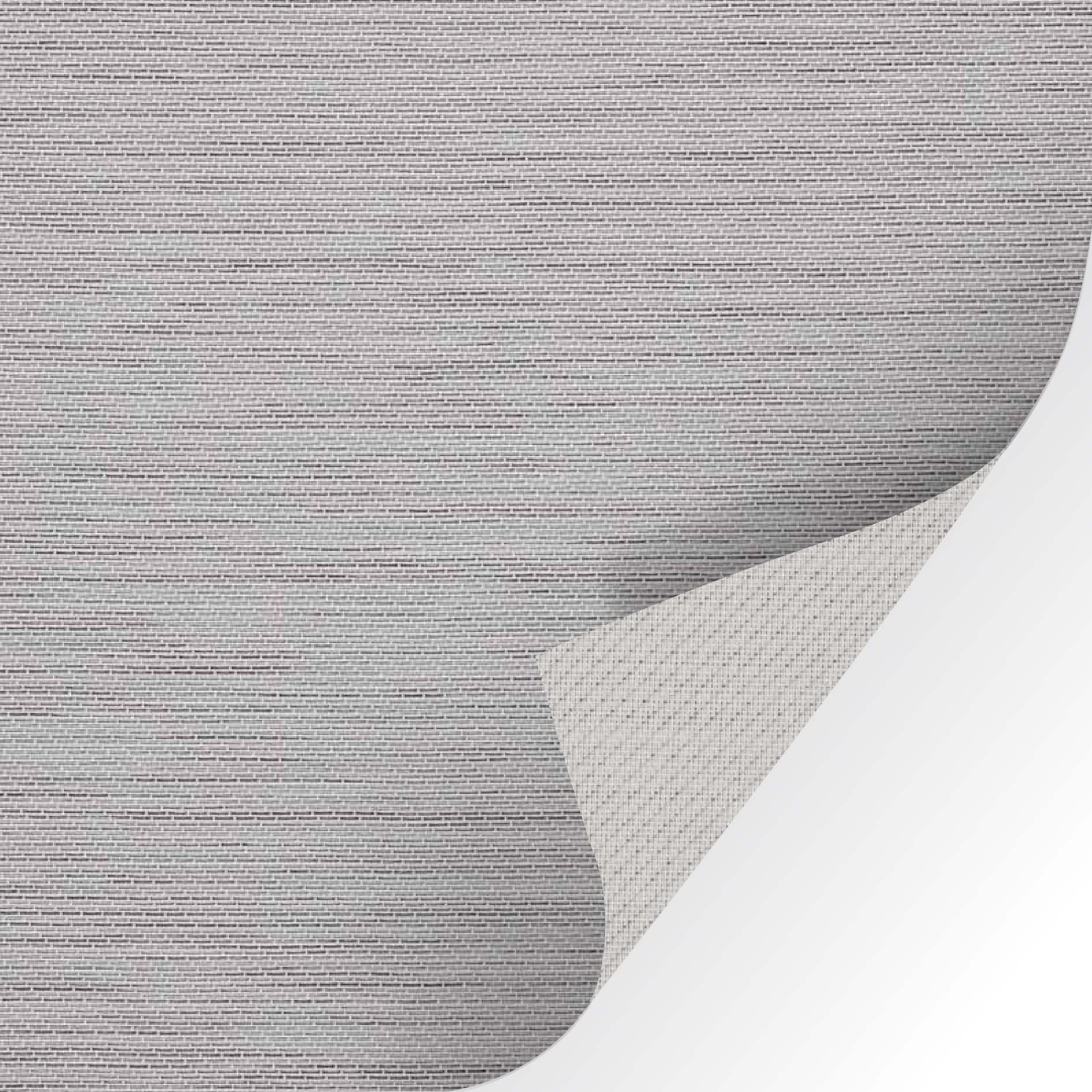

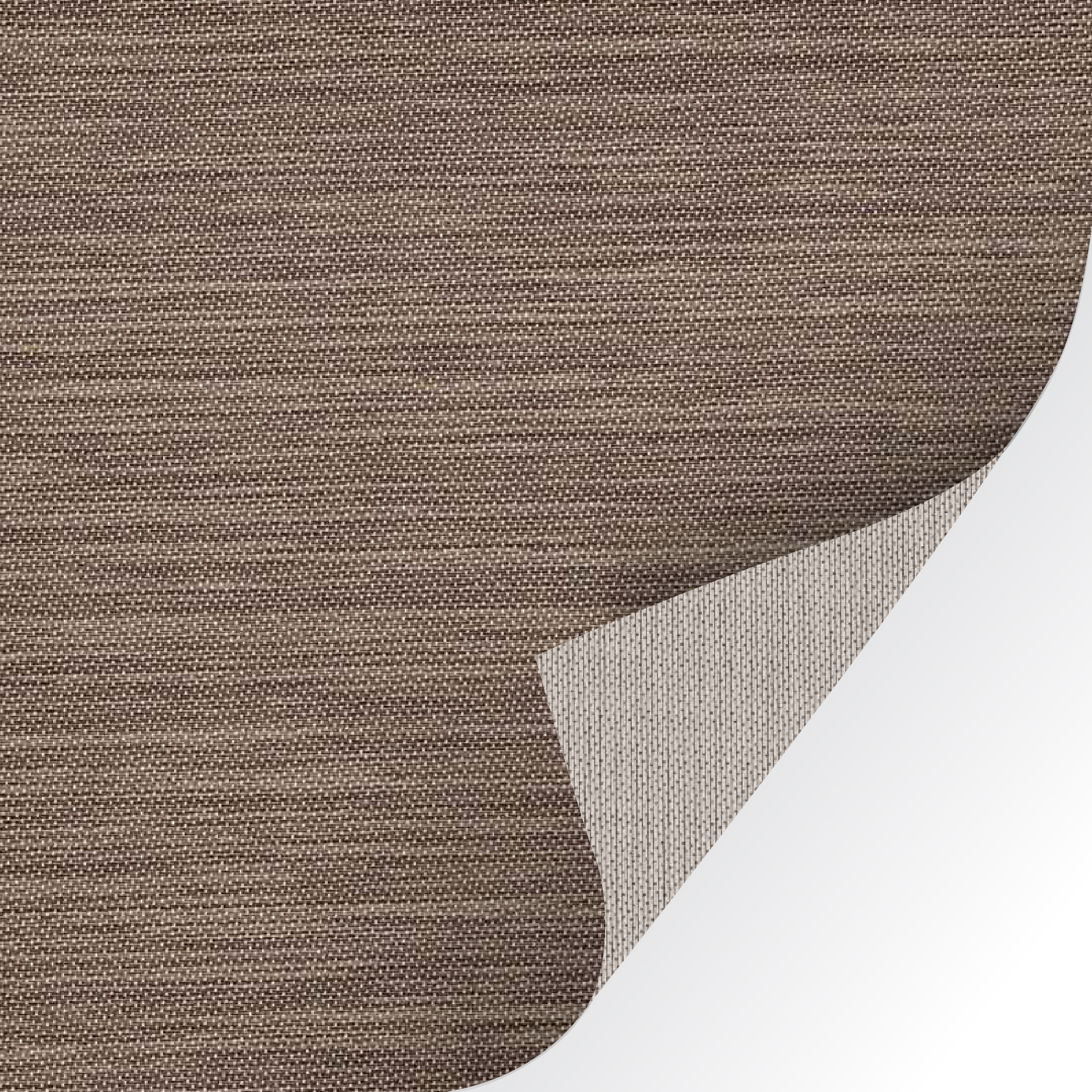

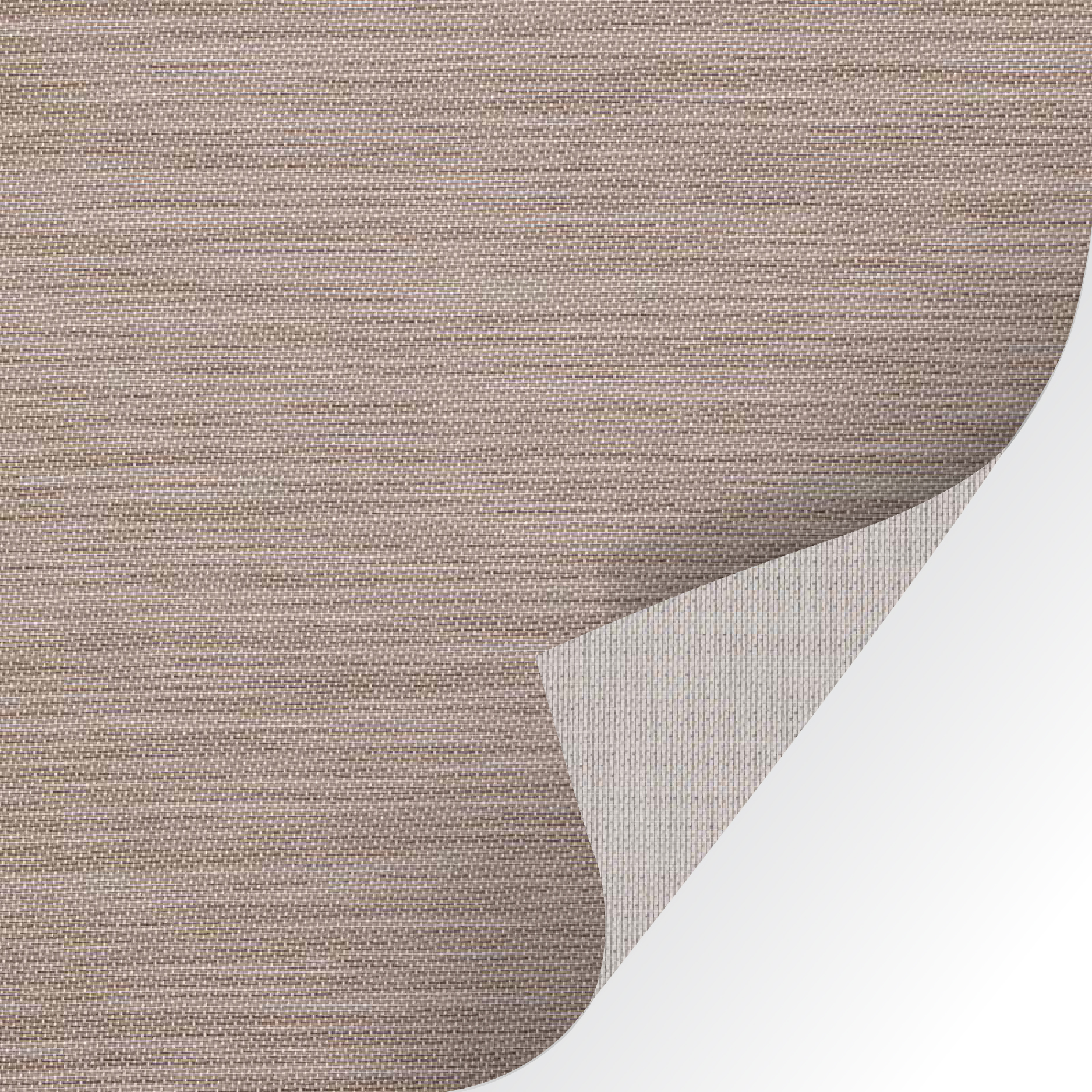

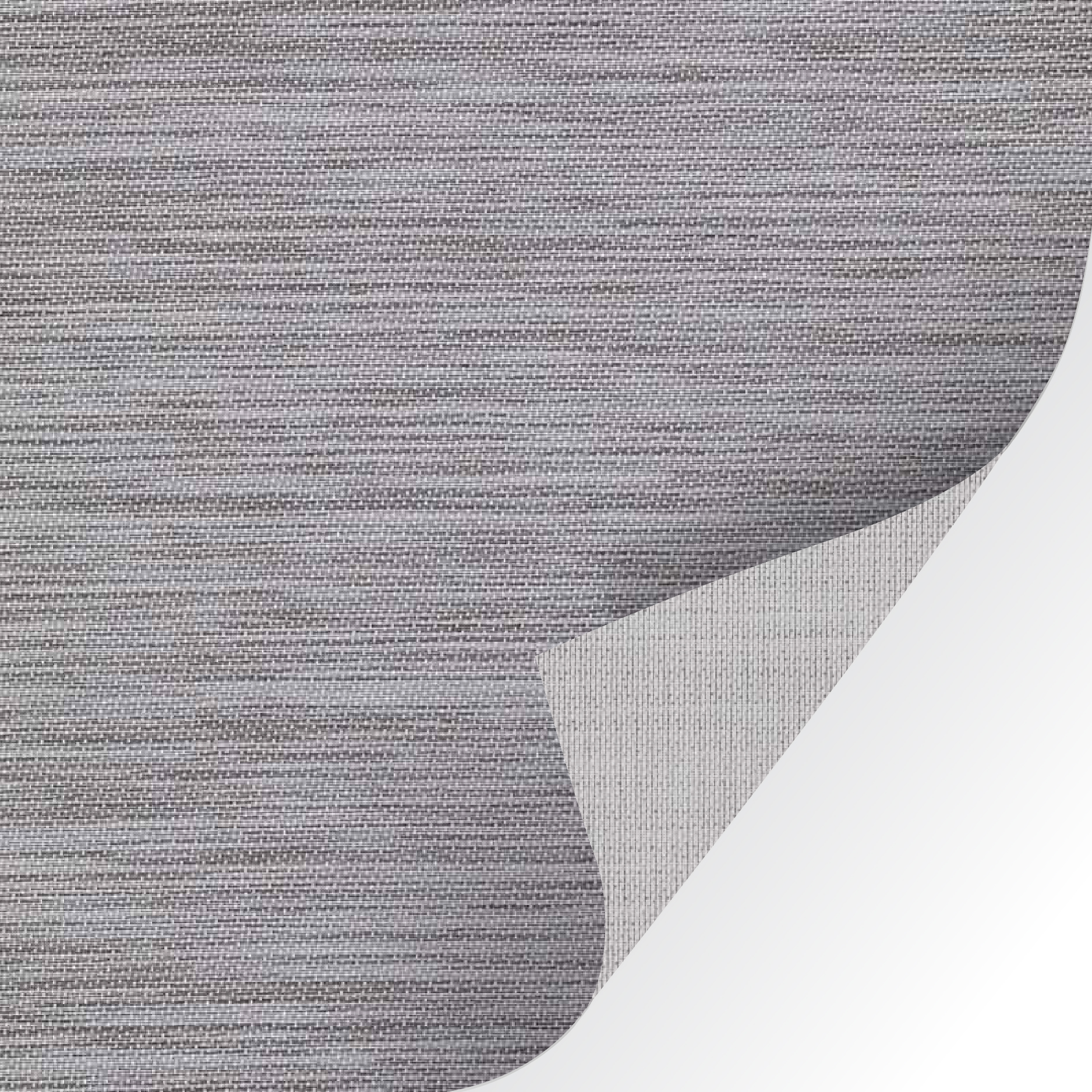

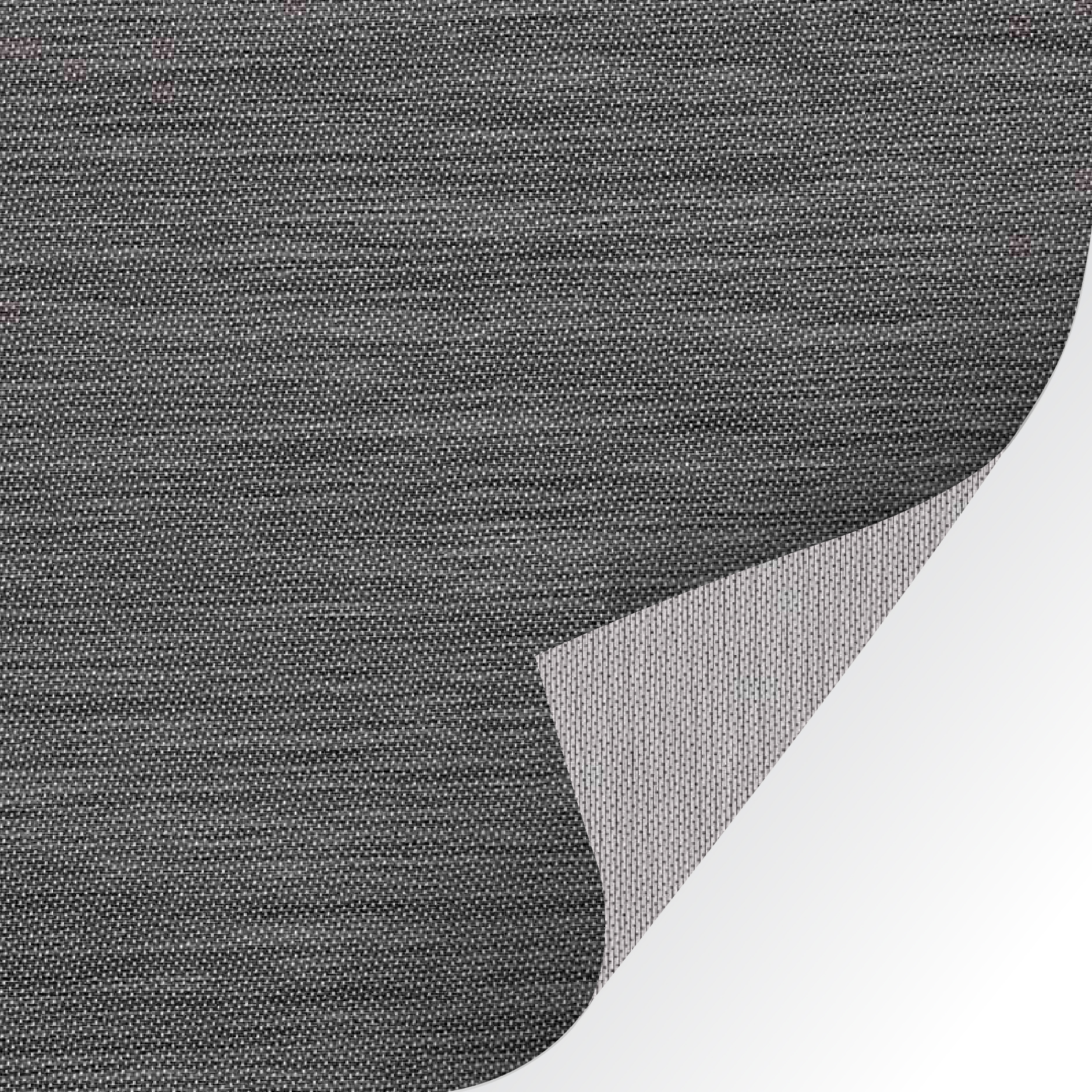

      T Screen™ Deco 5%

      10% Openness Factor

      E Screen™ 7510

      GlacierScreen+ Basketweave 10%

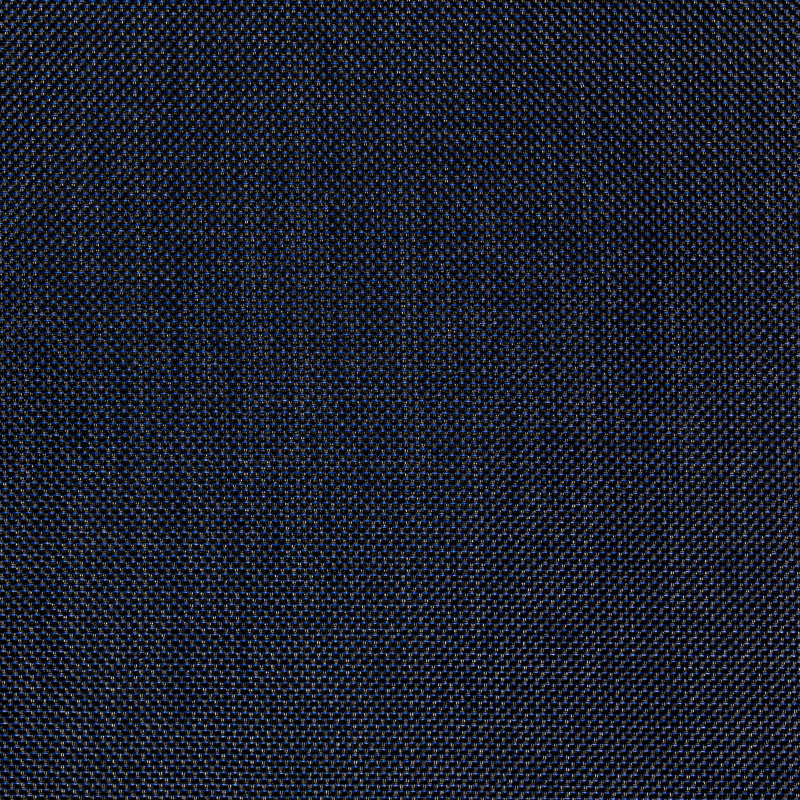

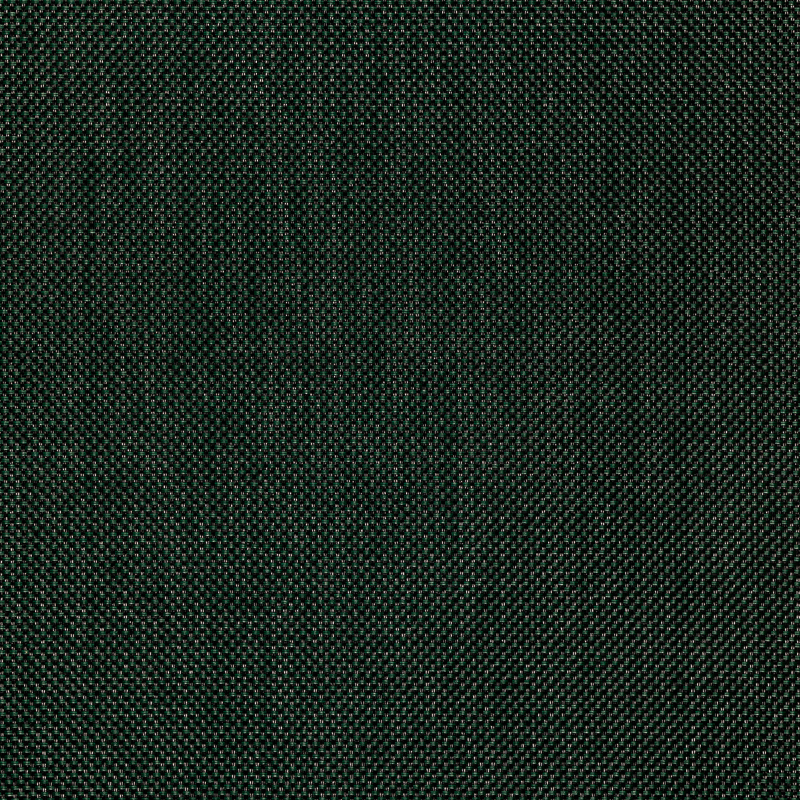

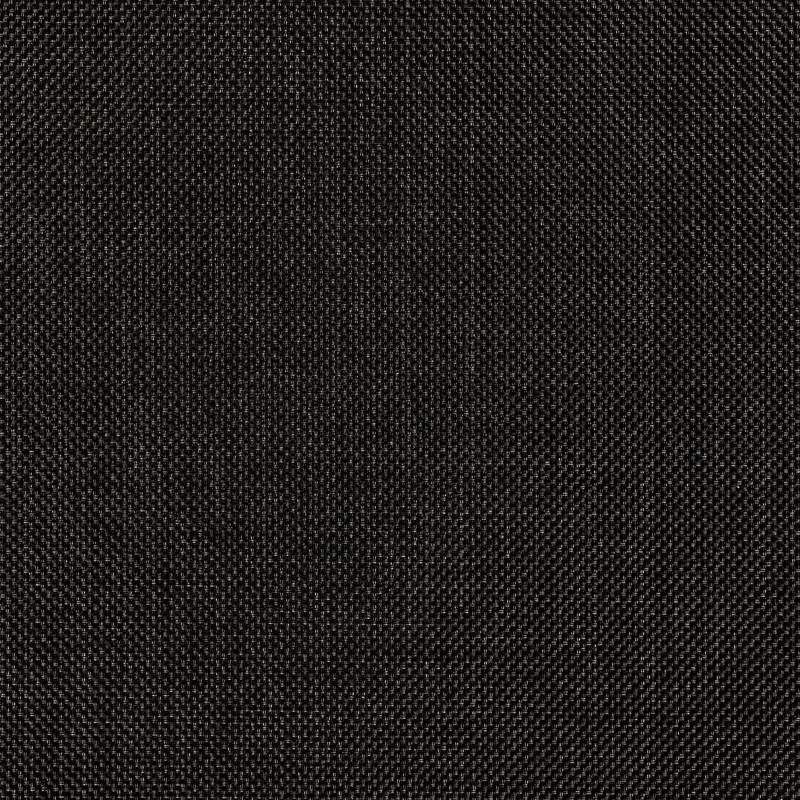

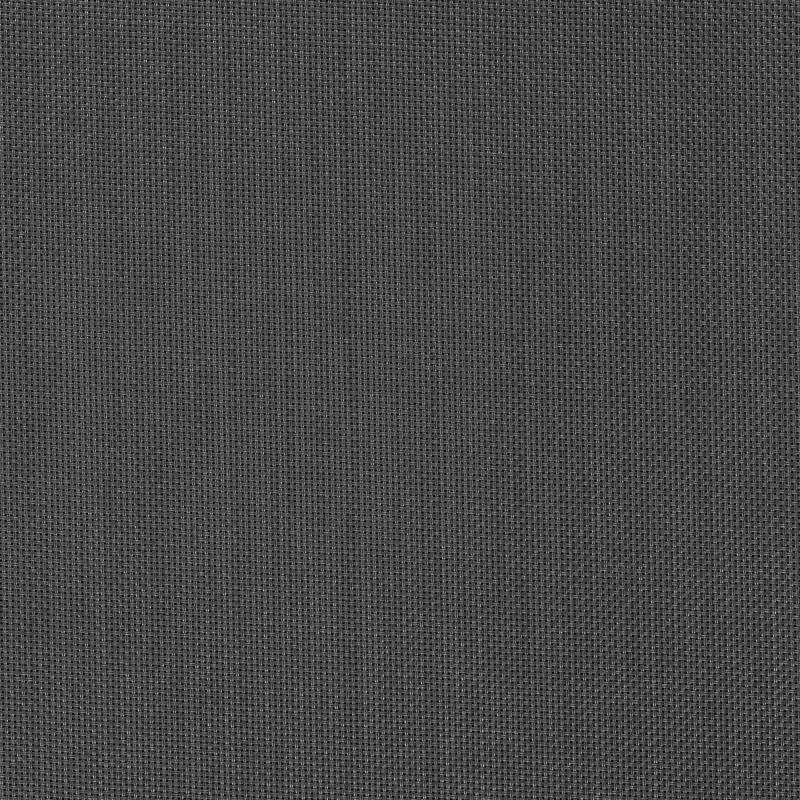

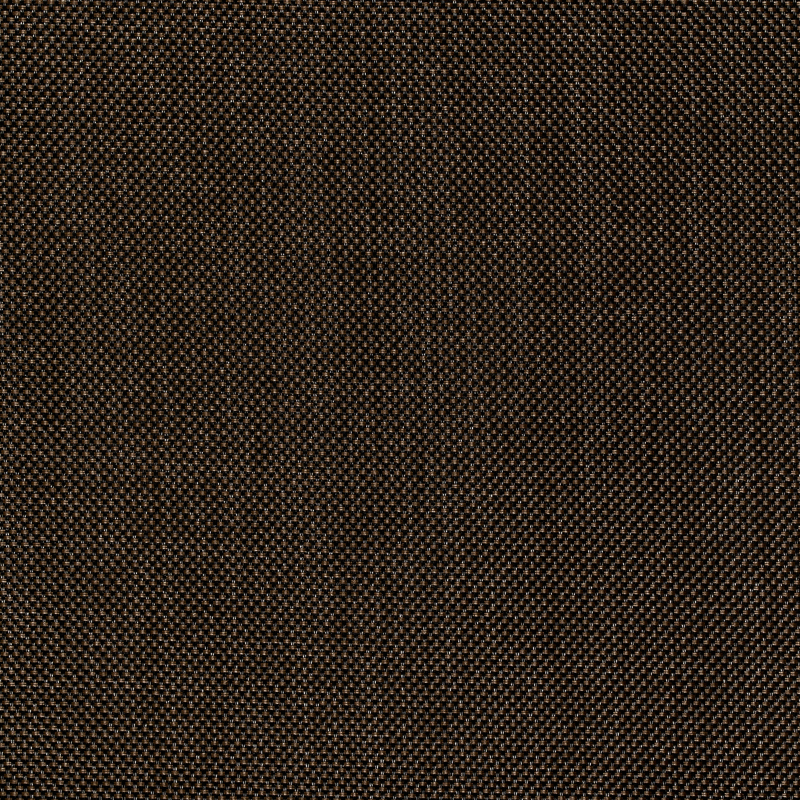

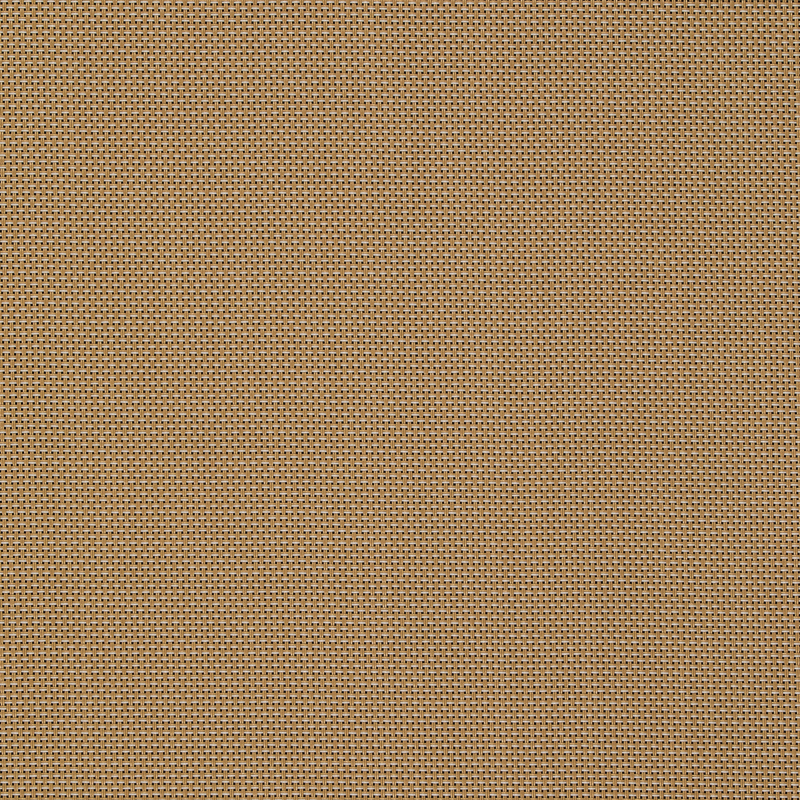

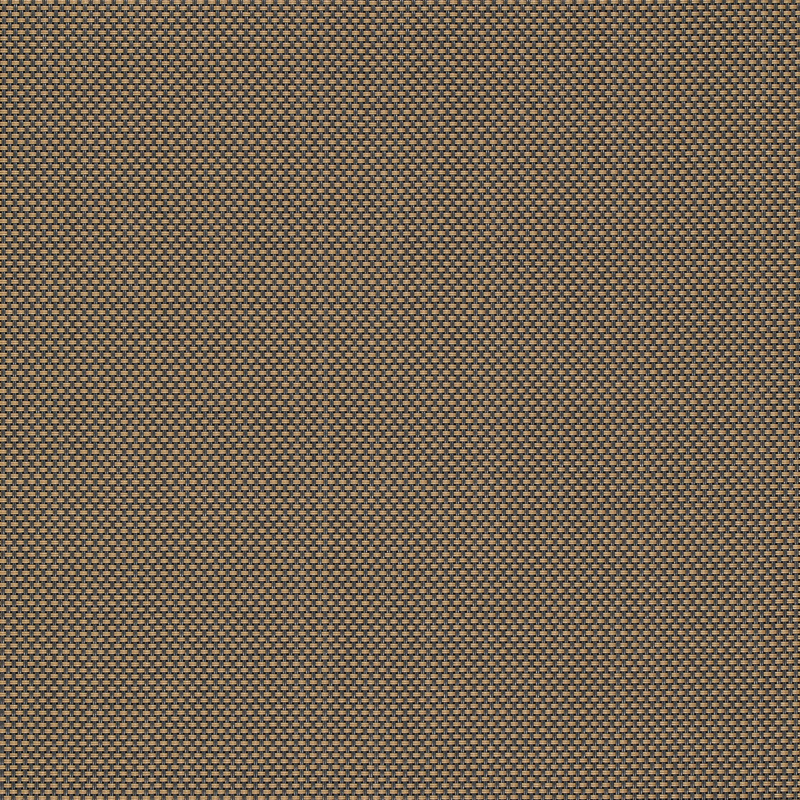

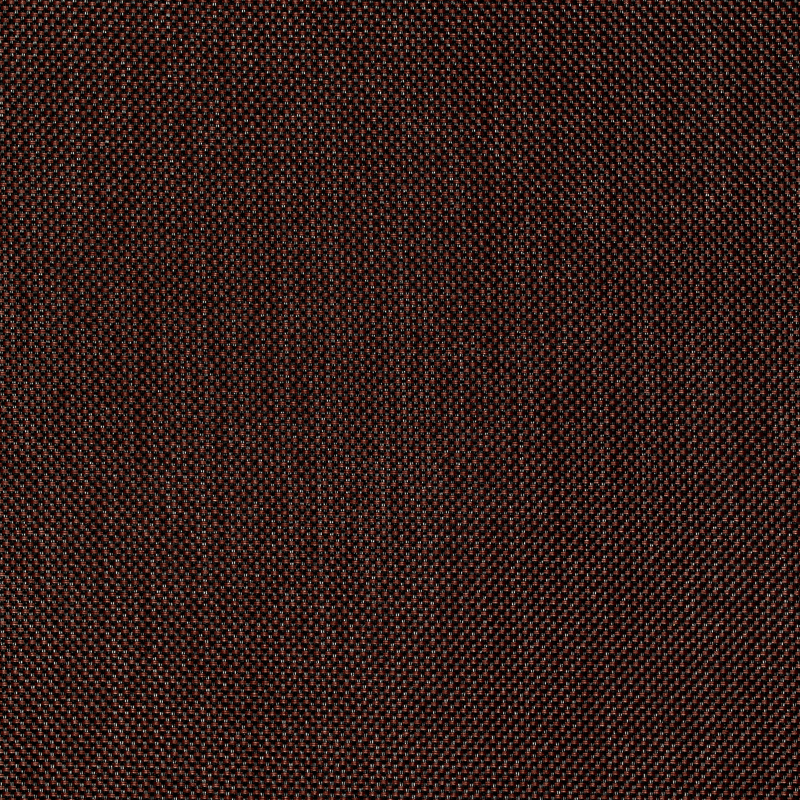

      Natté™ 10%

      SheerWeave® 2100

      SheerWeave® 2360

      SheerWeave® 2710

      SheerWeave® 4100

      14% Openness Factor

      SheerWeave® 3000

      25% Openness Factor

      SheerWeave® 1000

      Contact a representative

      Request a sample by emailing us.

      Please select desired state.

      Please select desired state.

      Download Installation Instructions

      Name Download
      FR Roller Shade Double Bracket Installation Instructions
      FR Roller Shade Installation Instructions

      Indoor Environmental Quality

      Hunter Douglas Architectural is committed to meeting the growing demand for healthier, more sustainable products. Meeting the rigorous and comprehensive standards for low emissions of VOCs, our GREENGUARD Certified and GREENGUARD Gold Certified fabrics contribute to the overall indoor air quality and general health of a building space.

      Select a PDF

      Product Declarations

      Hunter Douglas understands the importance of transparency to sustainable design and building. From raw material extradition through final disposal or reuse, we can provide life-cycle assessments on many of our product's environmental and health impacts.

      Select a PDF
